Spare parts

All spare and wear parts for the HovaCAL® calibration gas generators have been specially developed and tested for these units.
Select the articles you need from the list below and order by fax (+49 6171 / 91288-288), phone (+49 6171 / 91288-0) or email (info@hovacal.de).

Spare and wear parts for HovaCAL®




OrderNo.ArticleIllustration

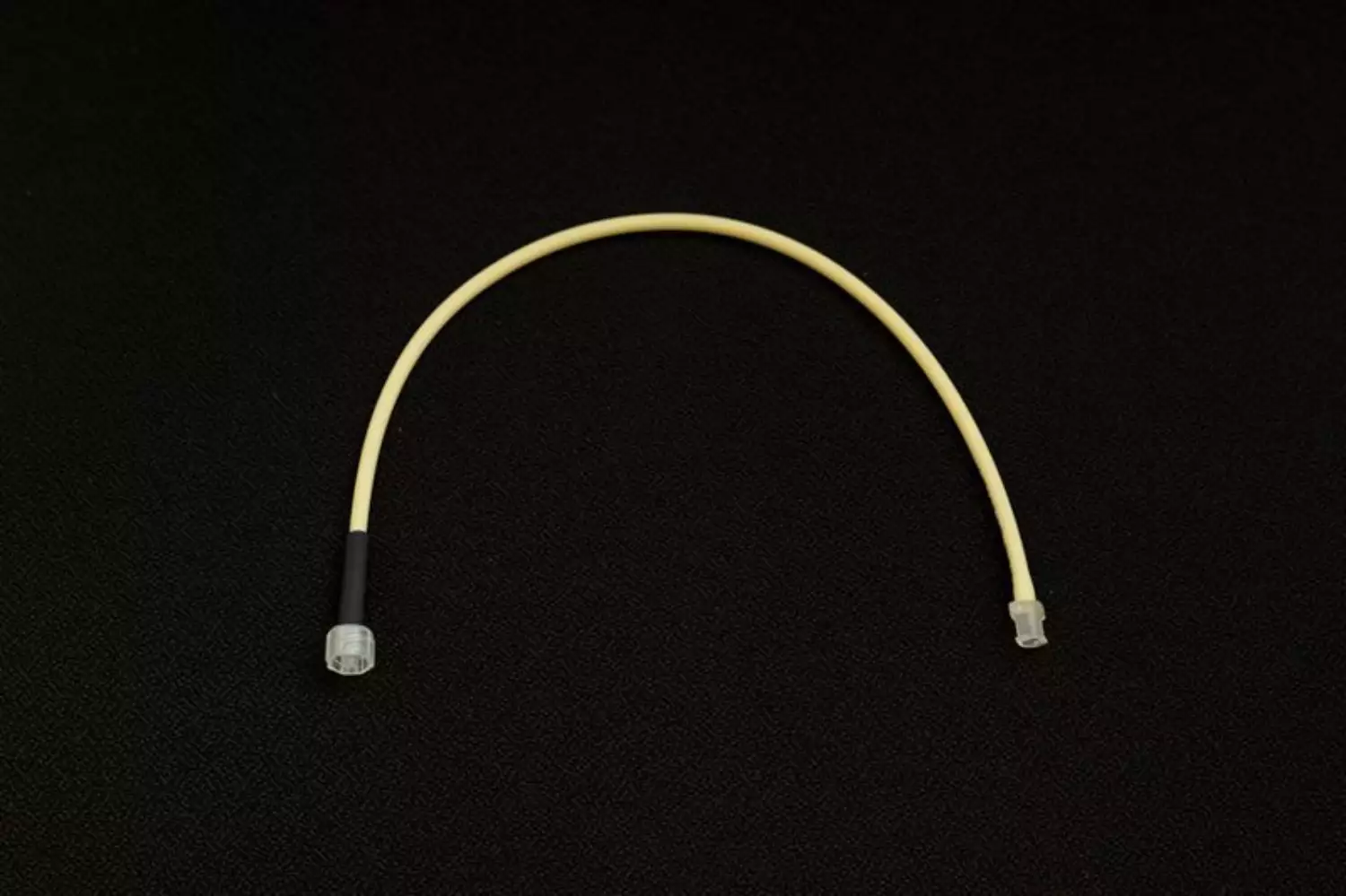

10001Peristaltic pump tube 0,5 x 1,6 mm (IDxWT), incl. connectors – color code: black

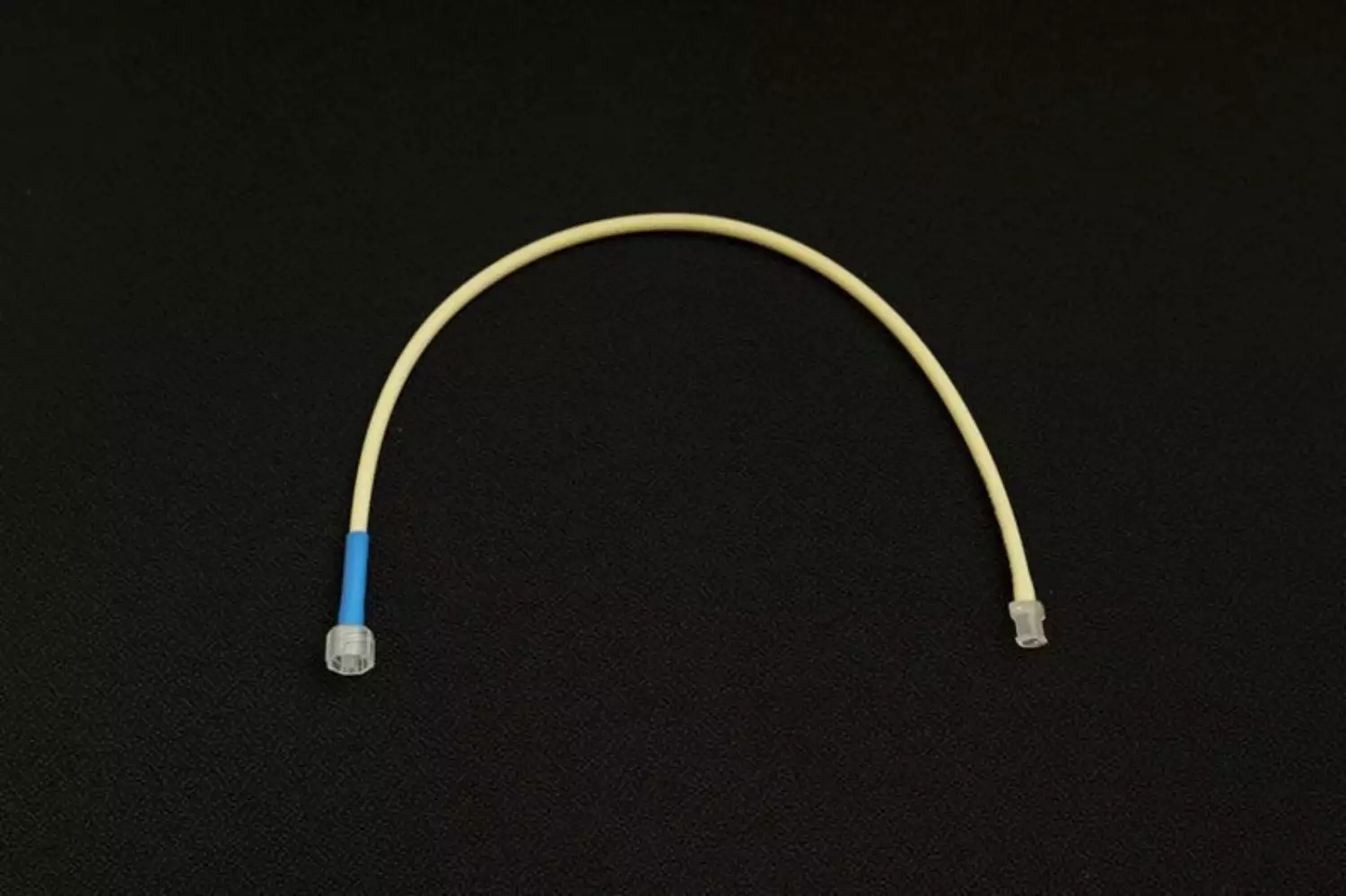

10002Peristaltic pump tube 0,8 x 1,6 mm (IDxWT), incl. connectors – color code: blue

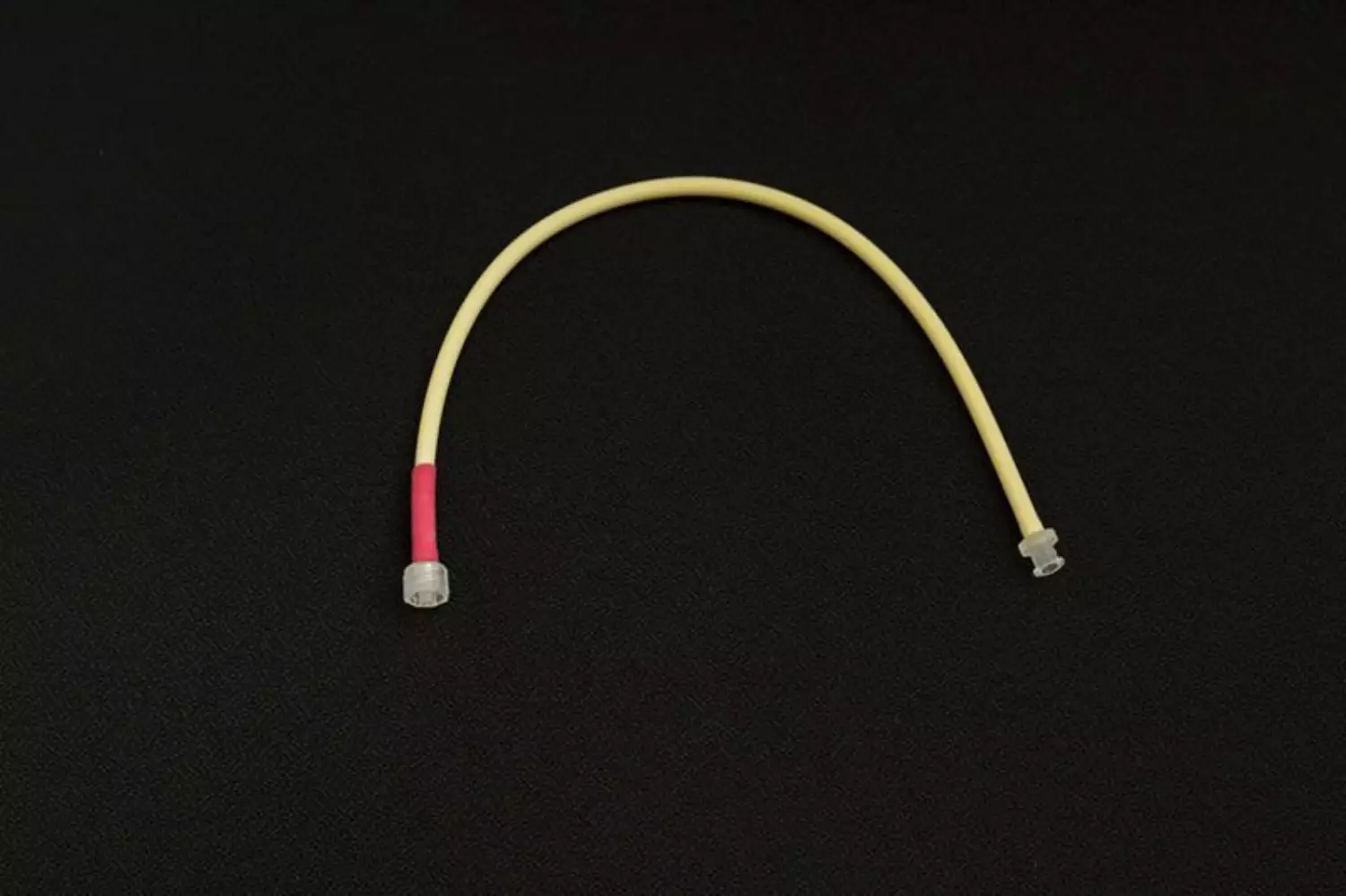

10003Peristaltic pump tube 1,6 x 1,6 mm (IDxWT), incl. connectors – color code: red
100031Peristaltic pump tube 0,25 x 1,6 mm (IDxWT), incl. connectors – color code: white

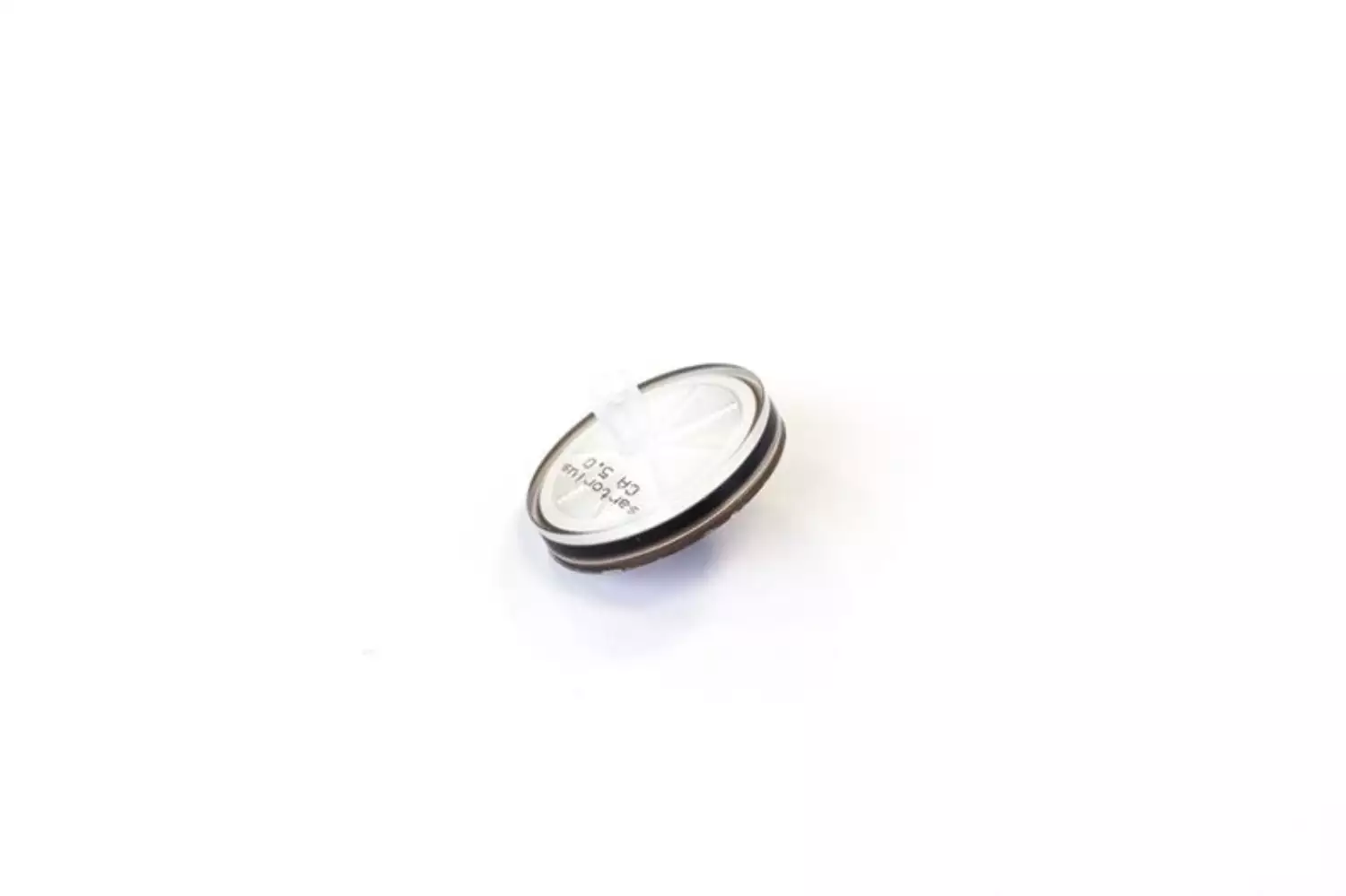

10004Liquid filter for high flow, not for organics and high concentrations

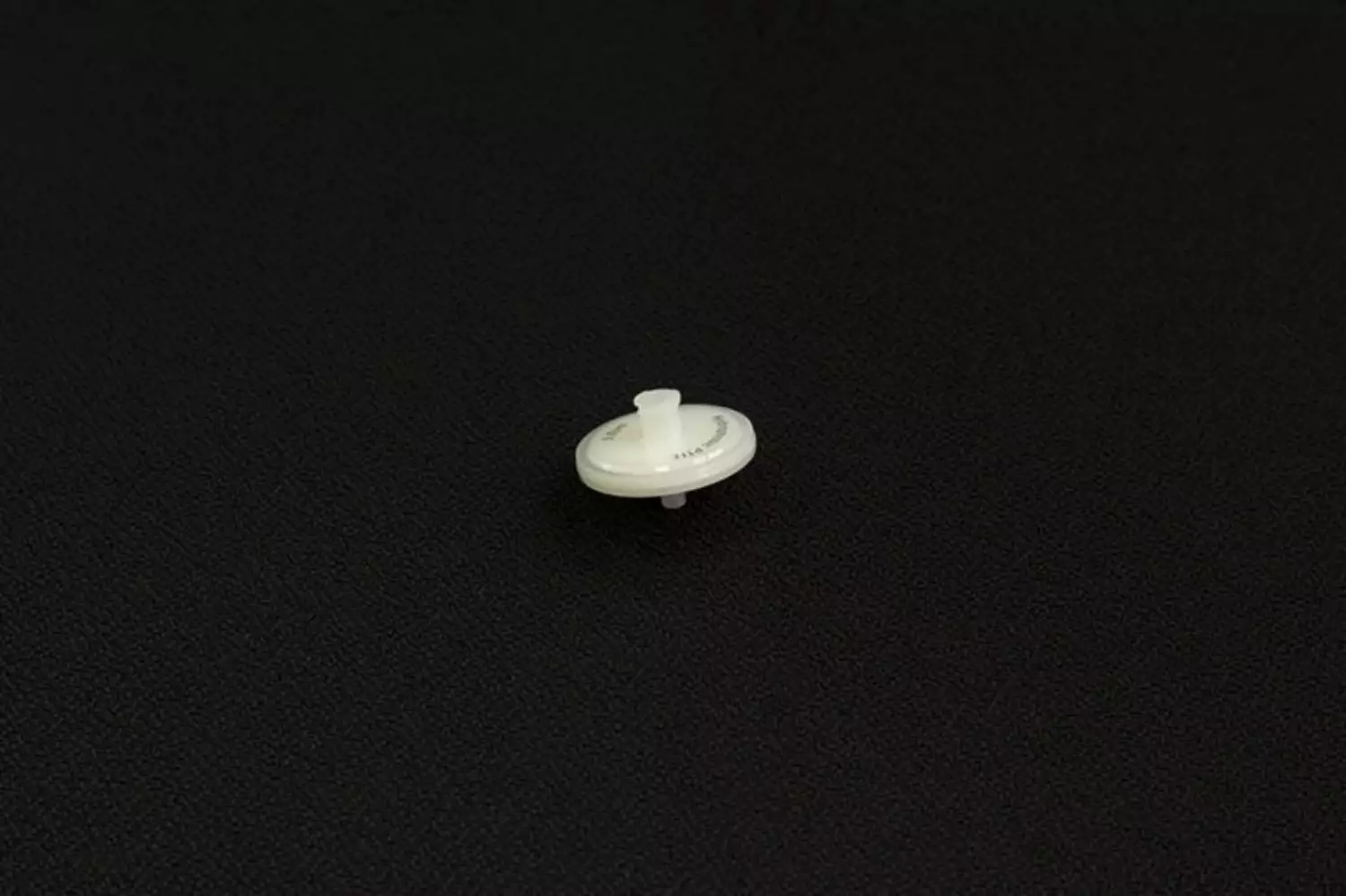

100041Liquid filter PTFE for low flow, organics and high concentrations

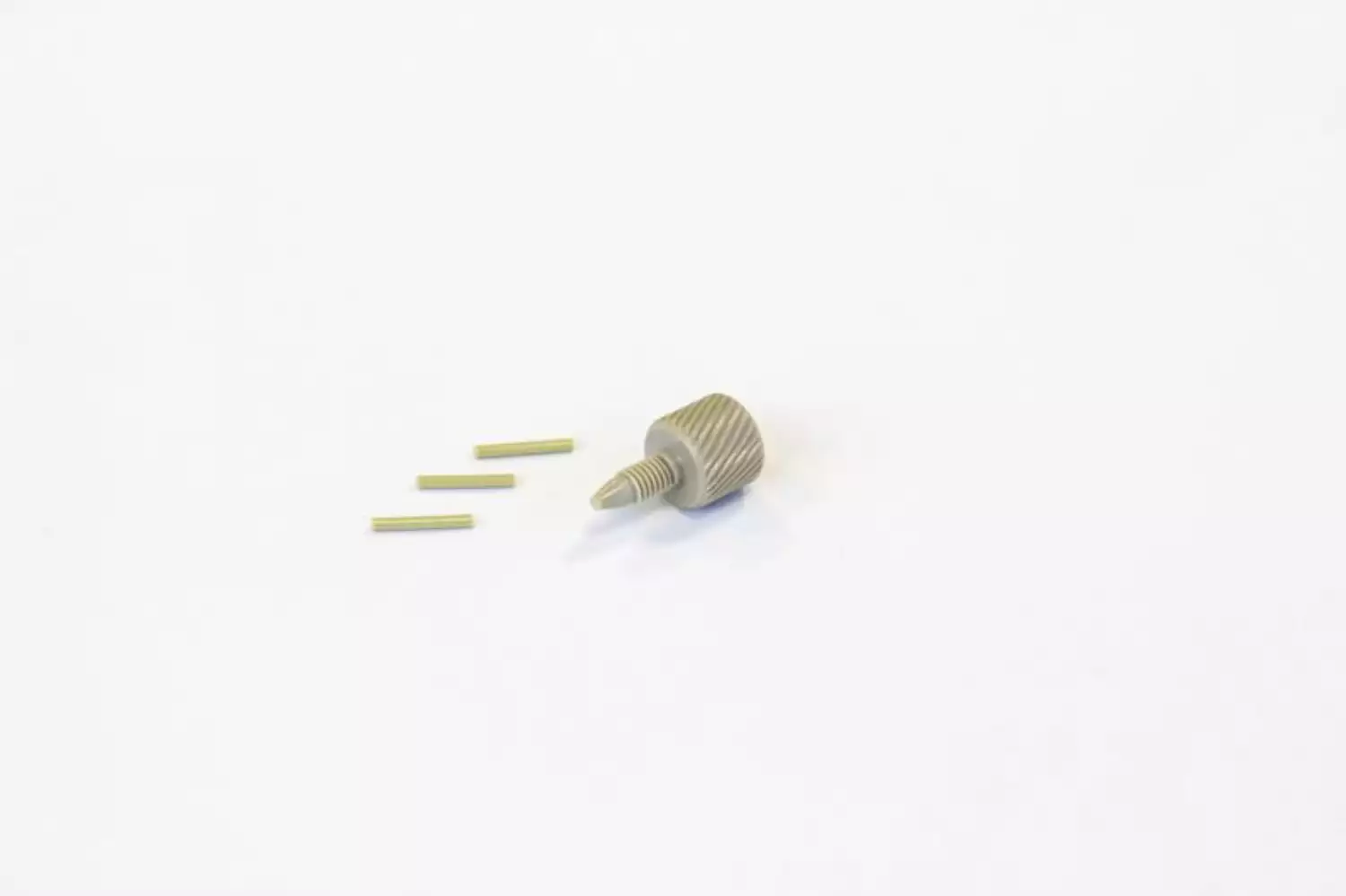

100042IC-Filter CG with 3 capillaries

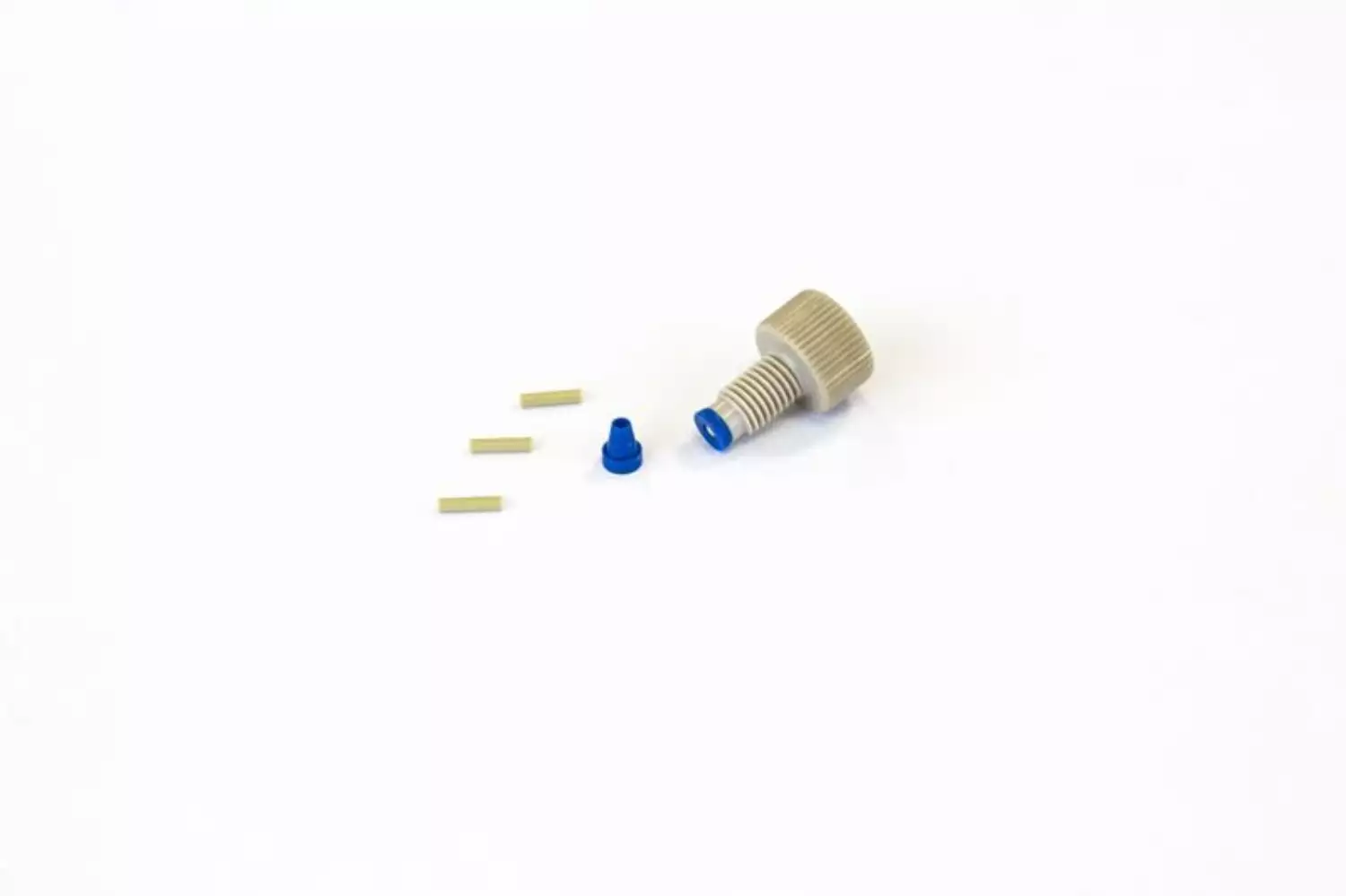

100043IC-Filter LL with 3 capillaries and 1 pcs. taper

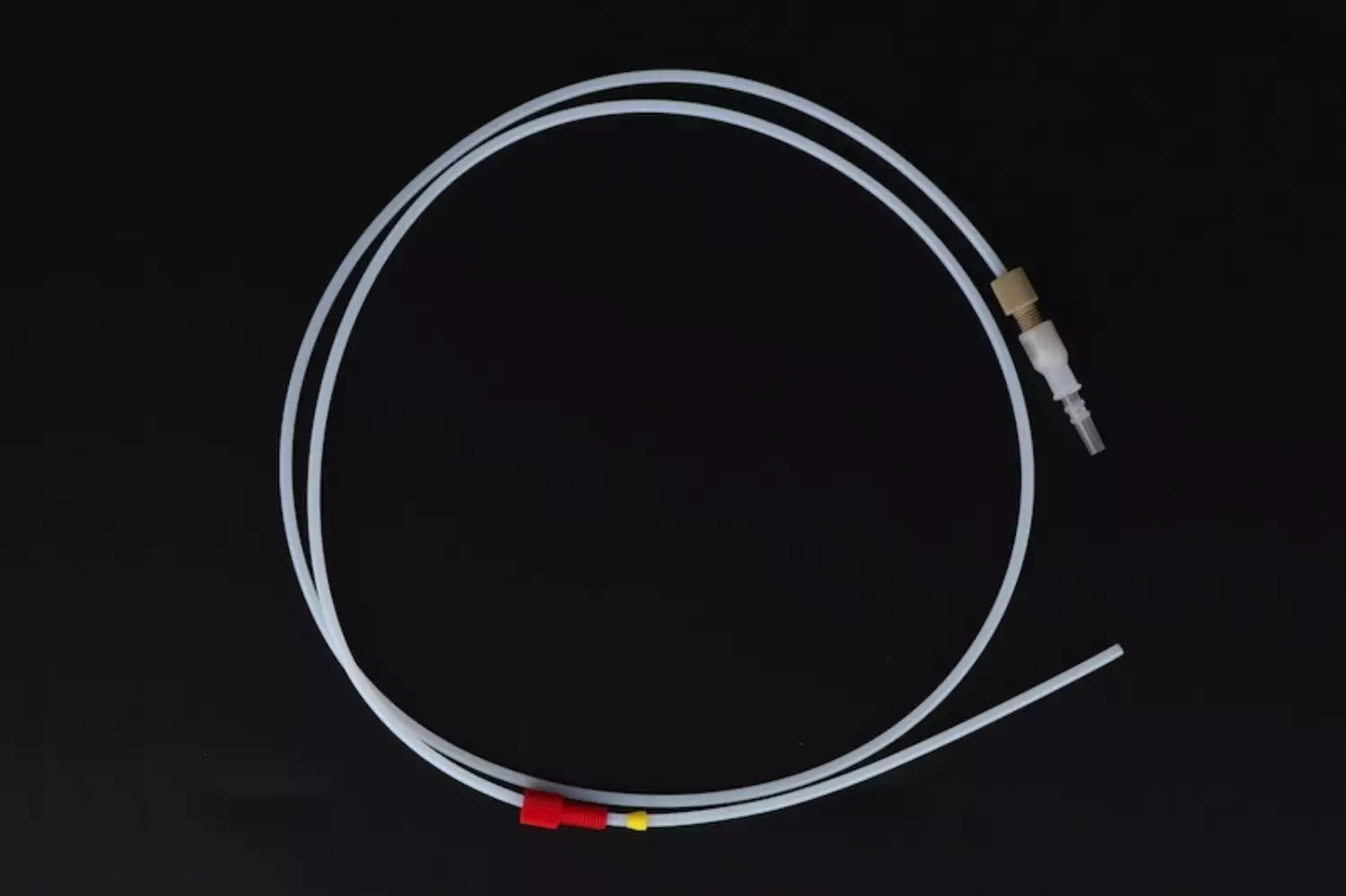

100057Liquid tube balance to pump, with tube adapter, complete, 1/8'', length 1 m

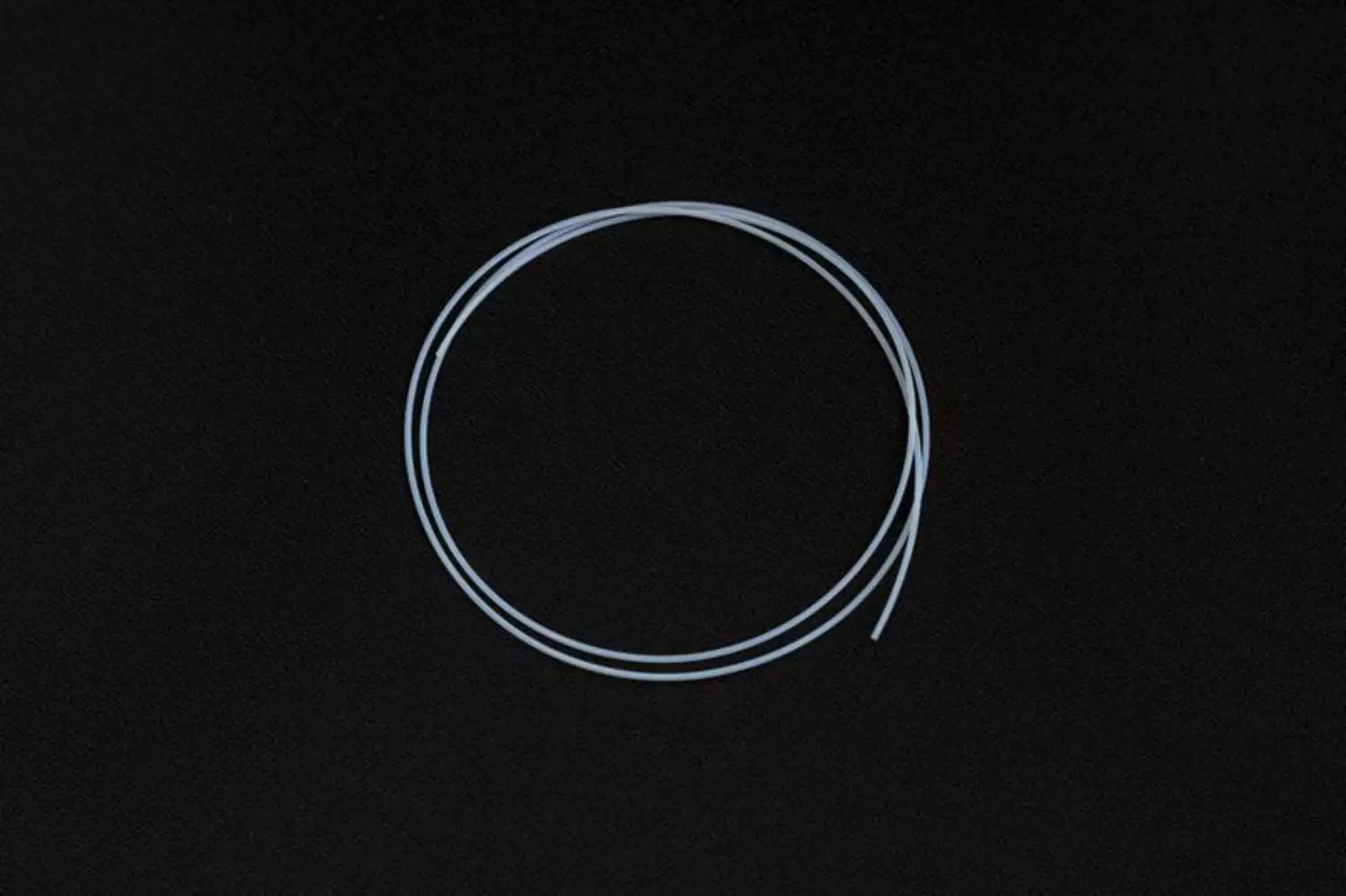

100058Liquid tube balance to pump, without tube adapter length 1 m

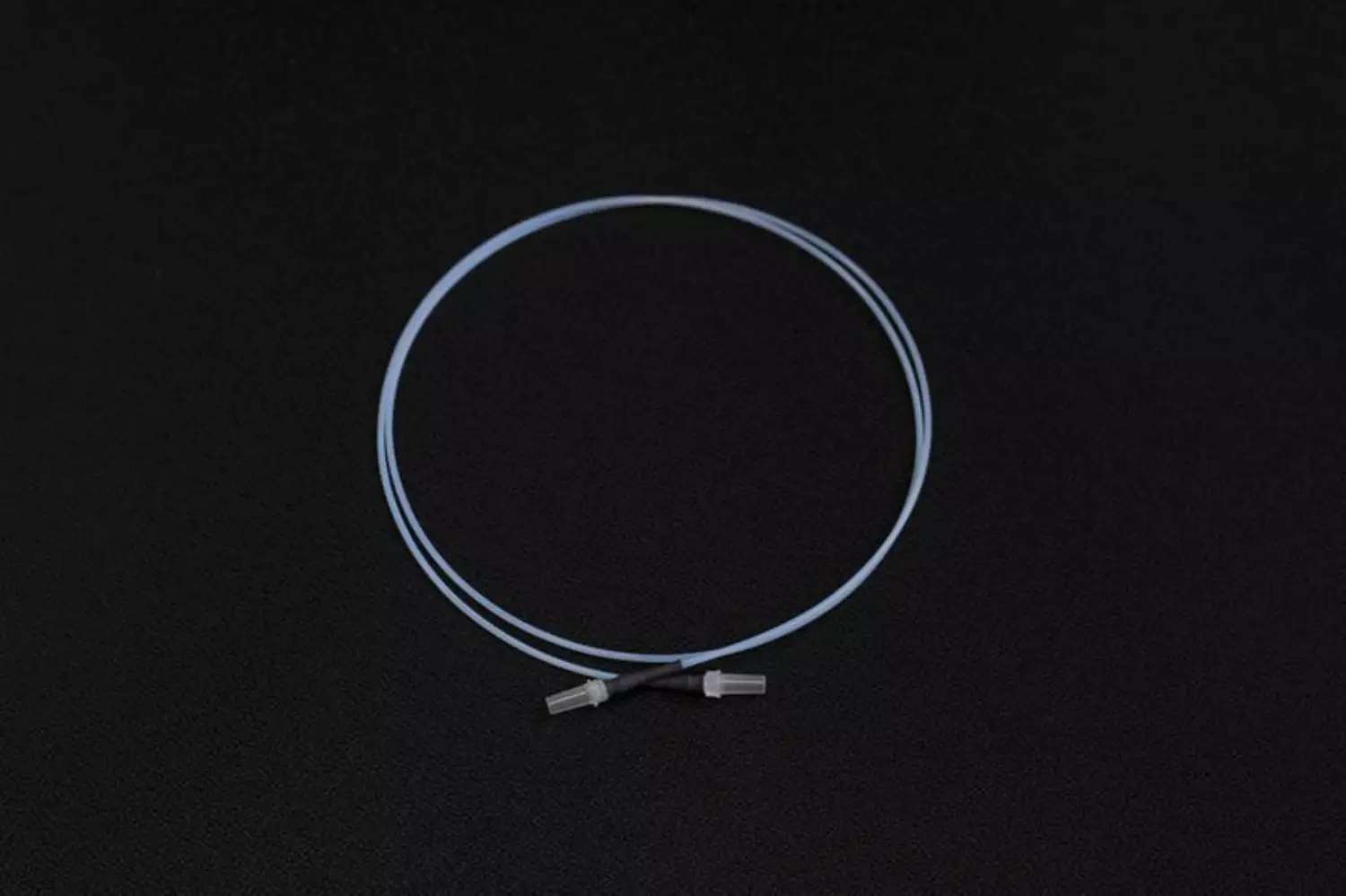

100052Liquid tube for NH3 bag, length 0,5 m

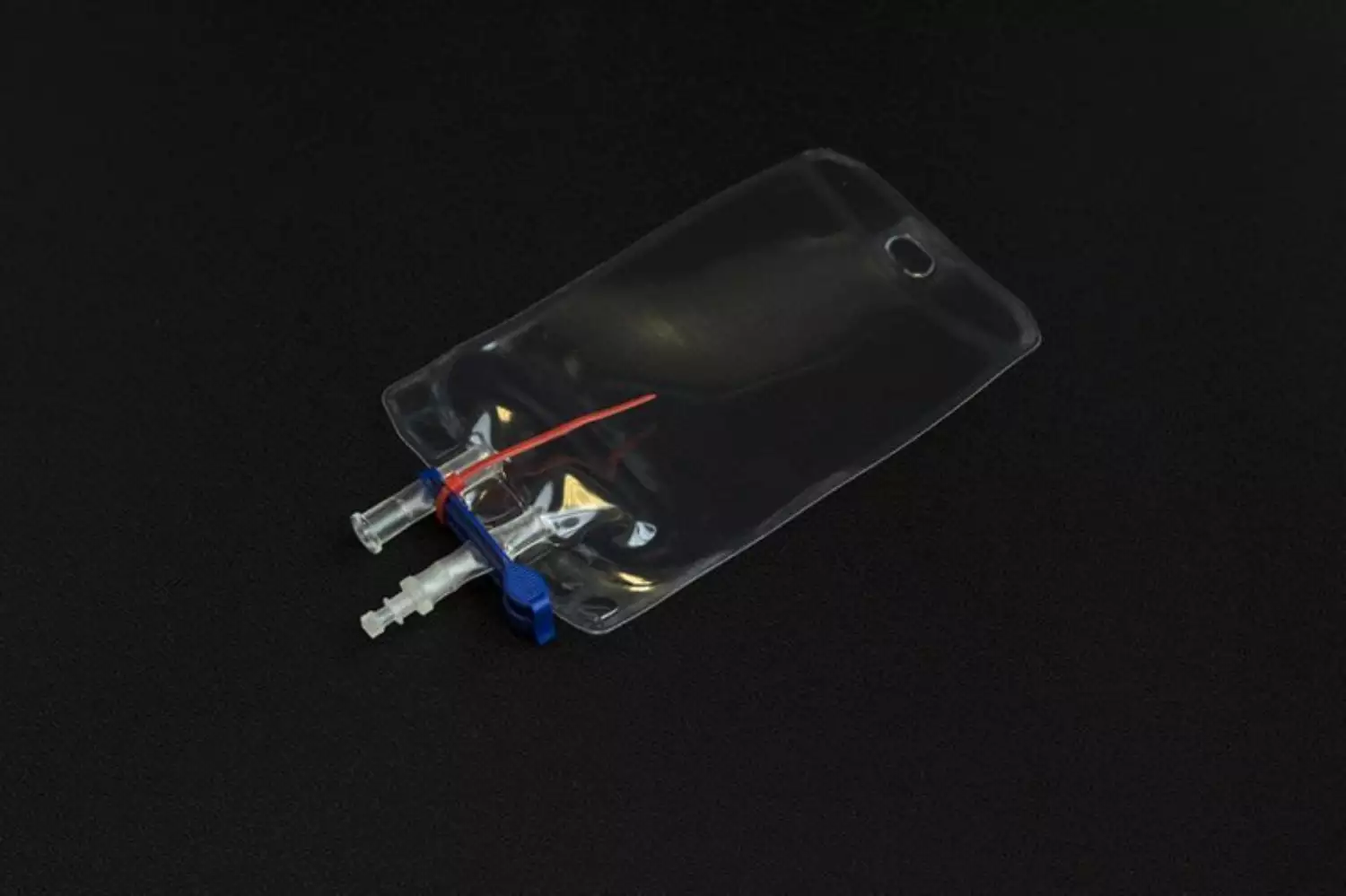

100053Reagent solution bag 100ml

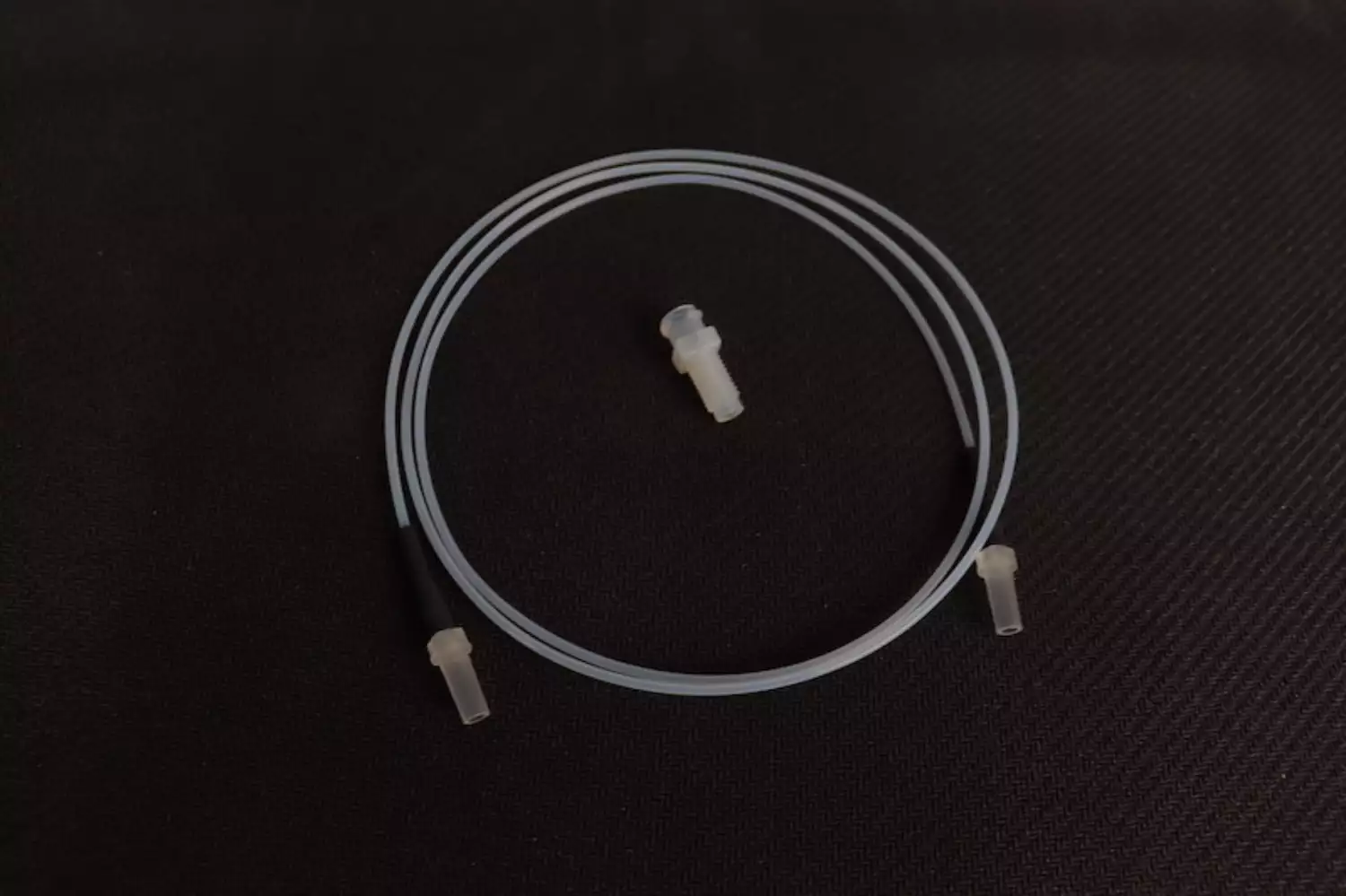

100060Liquid tube and screw connection for NH3 bag, length 0,5 m

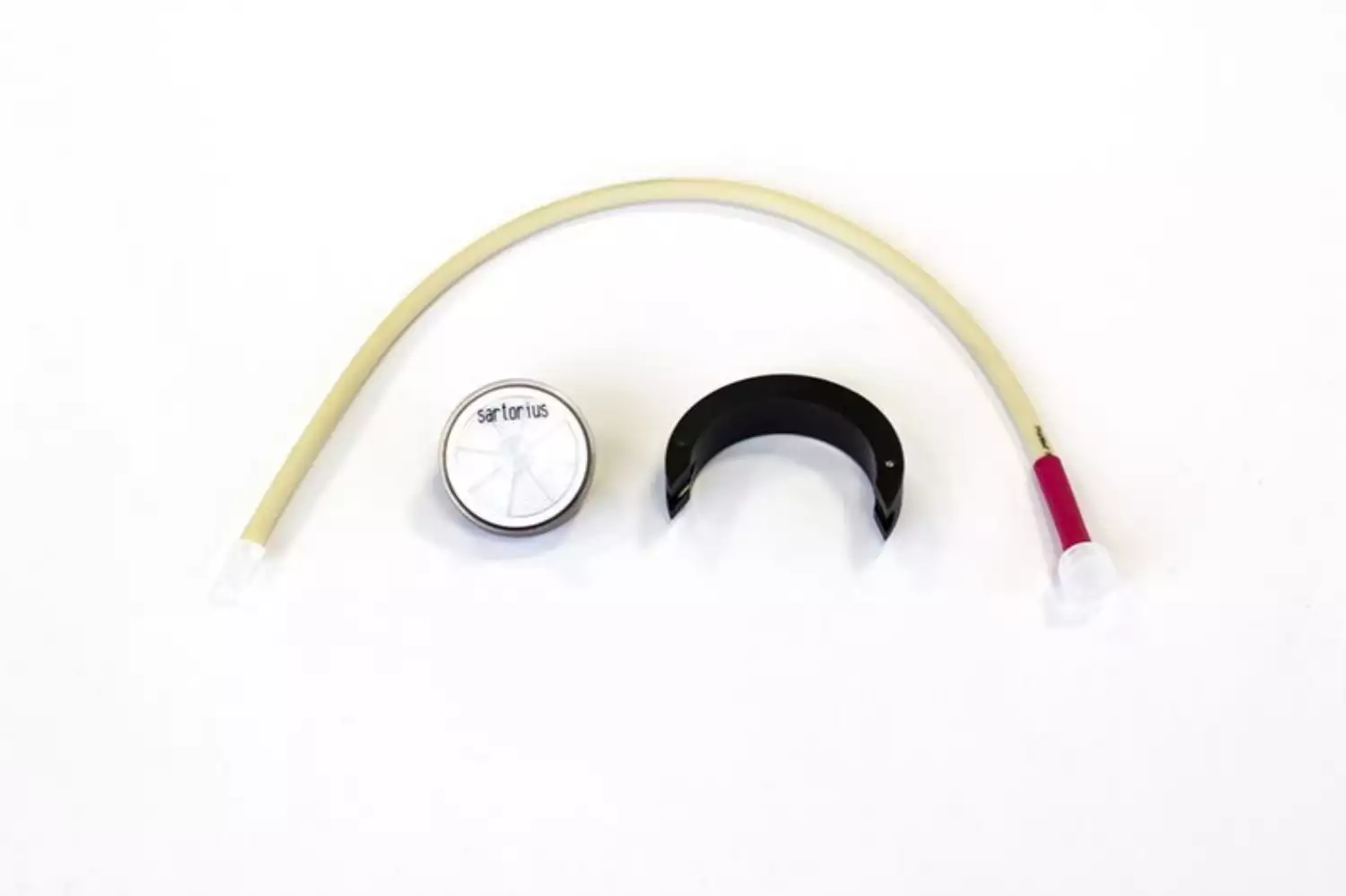

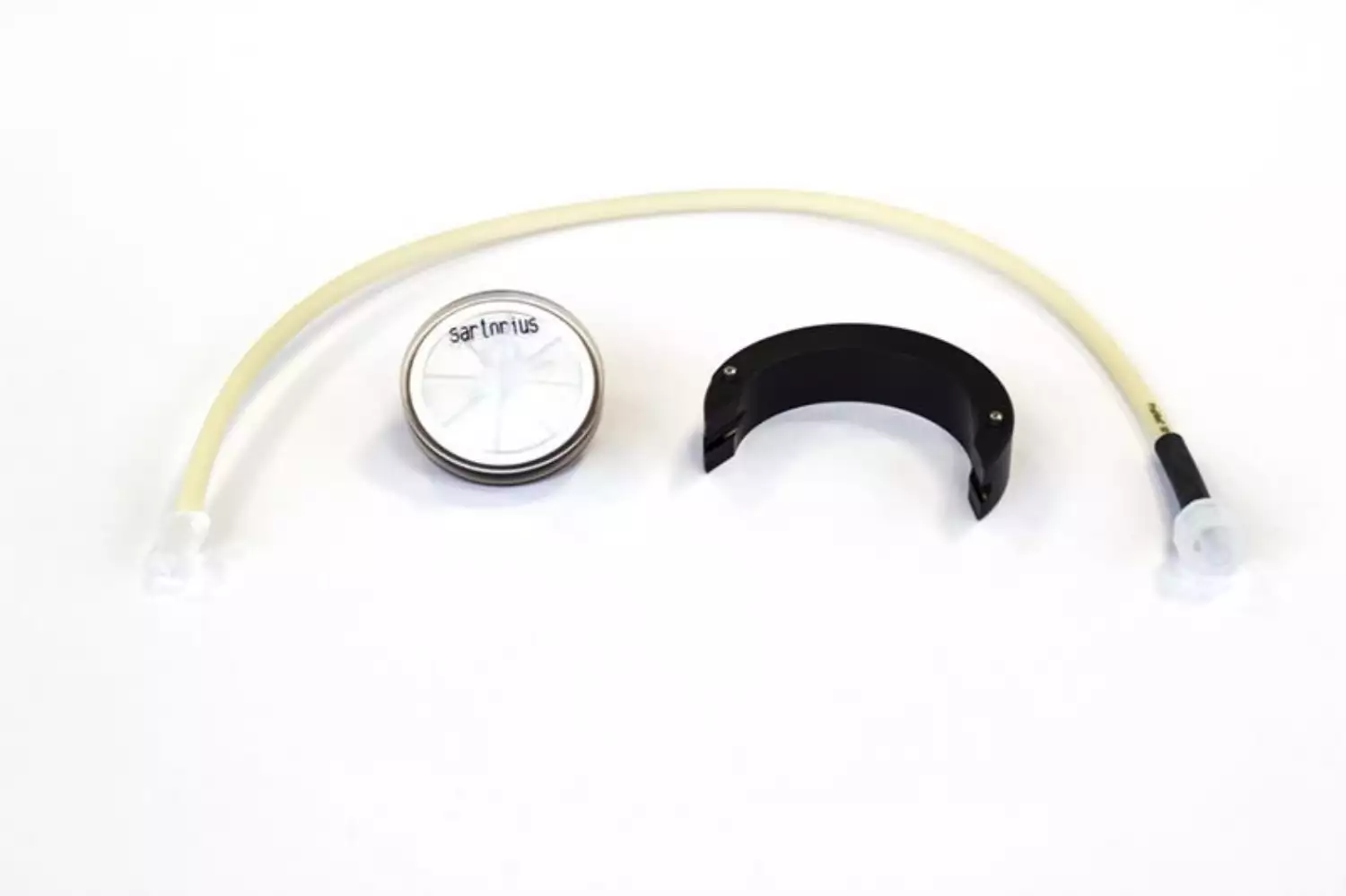

10001-SETPeristaltic tube 0,5 x 1,6 mm (IDxWT), incl. connectors – color code: black, liquid filter high flow and tube saddle

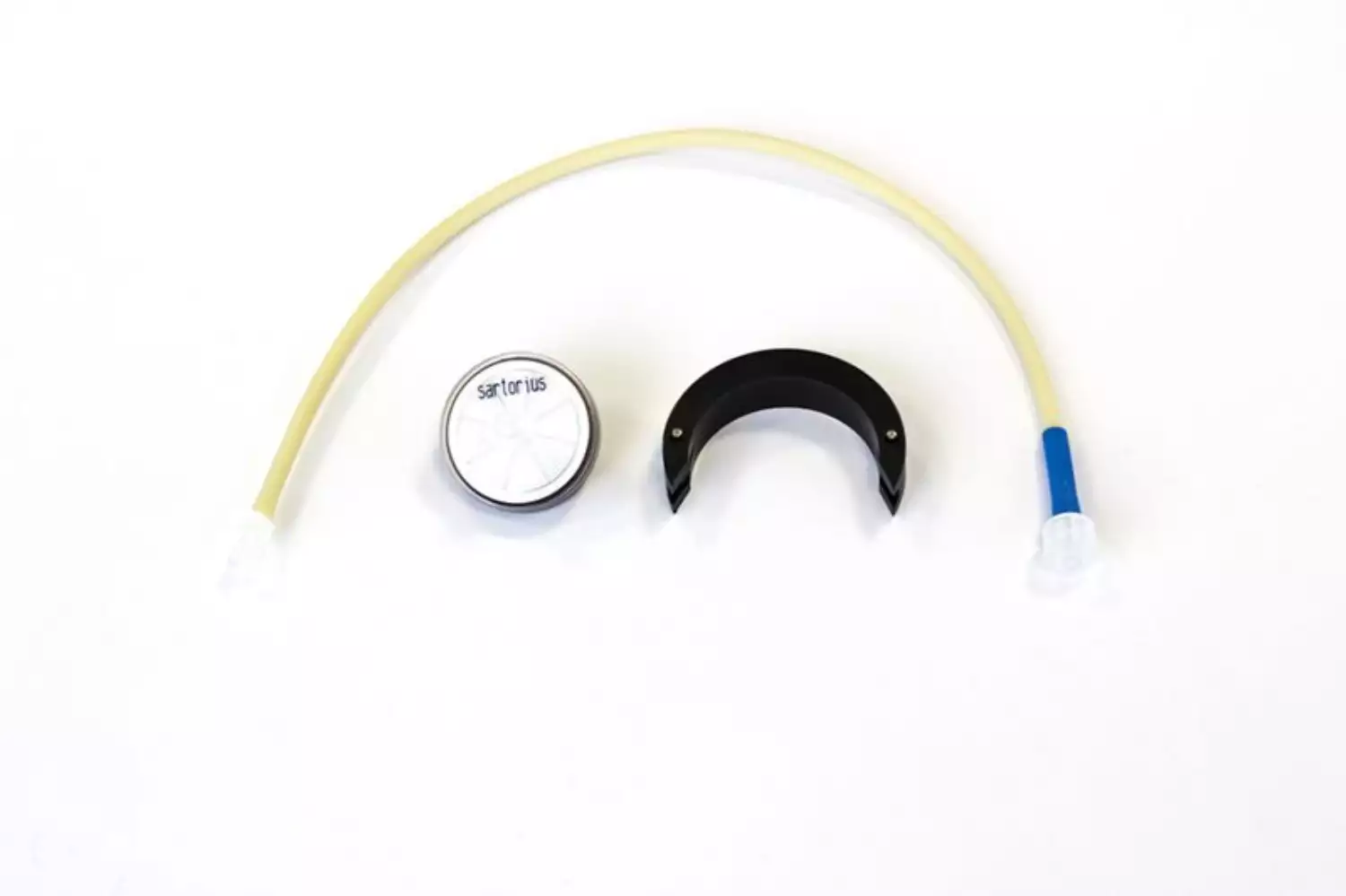

10002-SETPeristaltic tube 0,8 x 1,6 mm (IDxWT), incl. connectors – color code: blue, liquid filter high flow and tube saddle
10003-SETPeristaltic tube 1,6 x 1,6 mm (IDxWT), incl. connectors – color code: red, liquid filter high flow and tube saddle

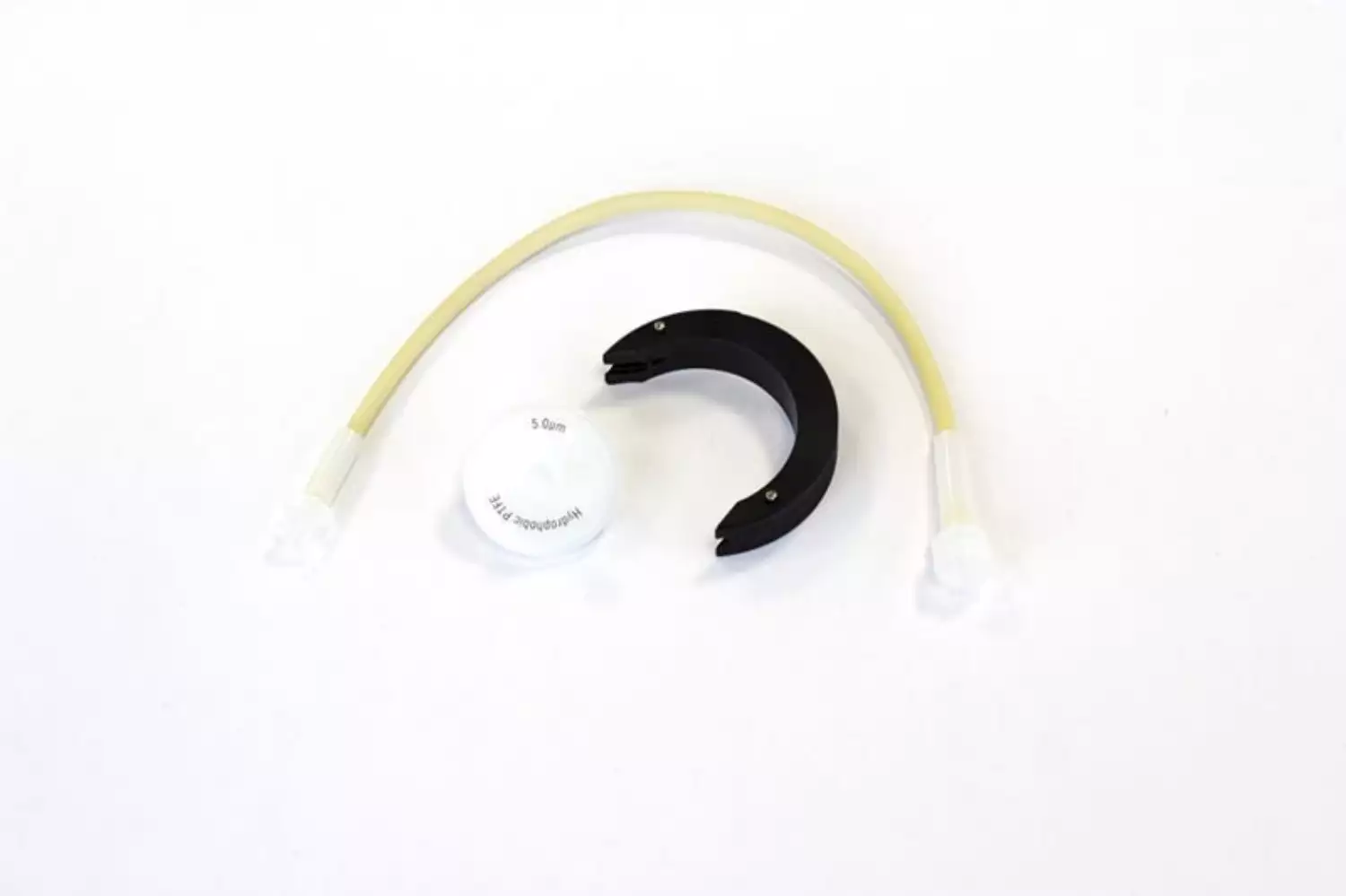

100031-SETPeristaltic tube 0,25 x 1,6 mm (IDxWT), incl. connectors – color code: white, liquid filter low flow and tube saddle

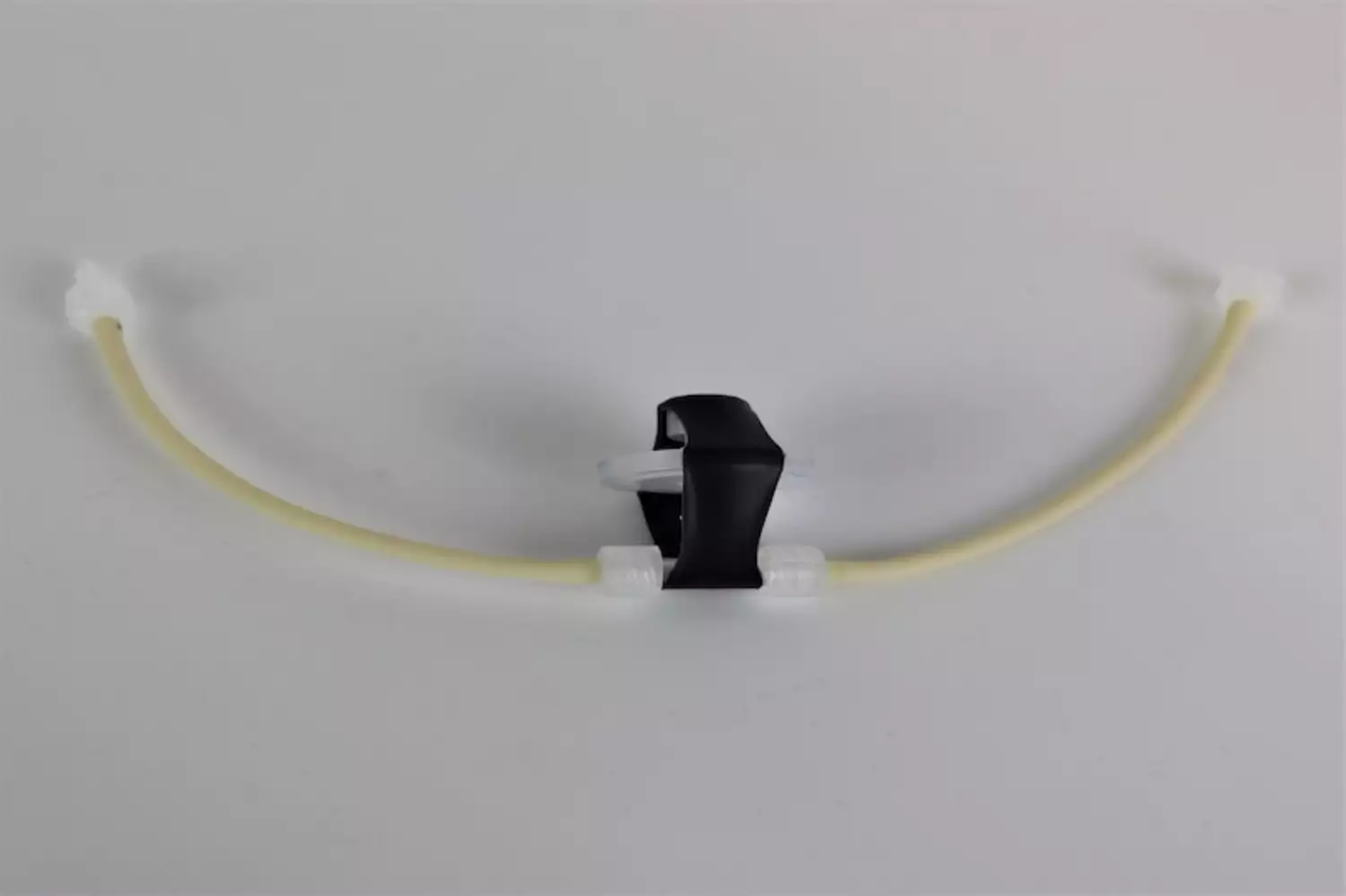

100012Pulsation damper-MF

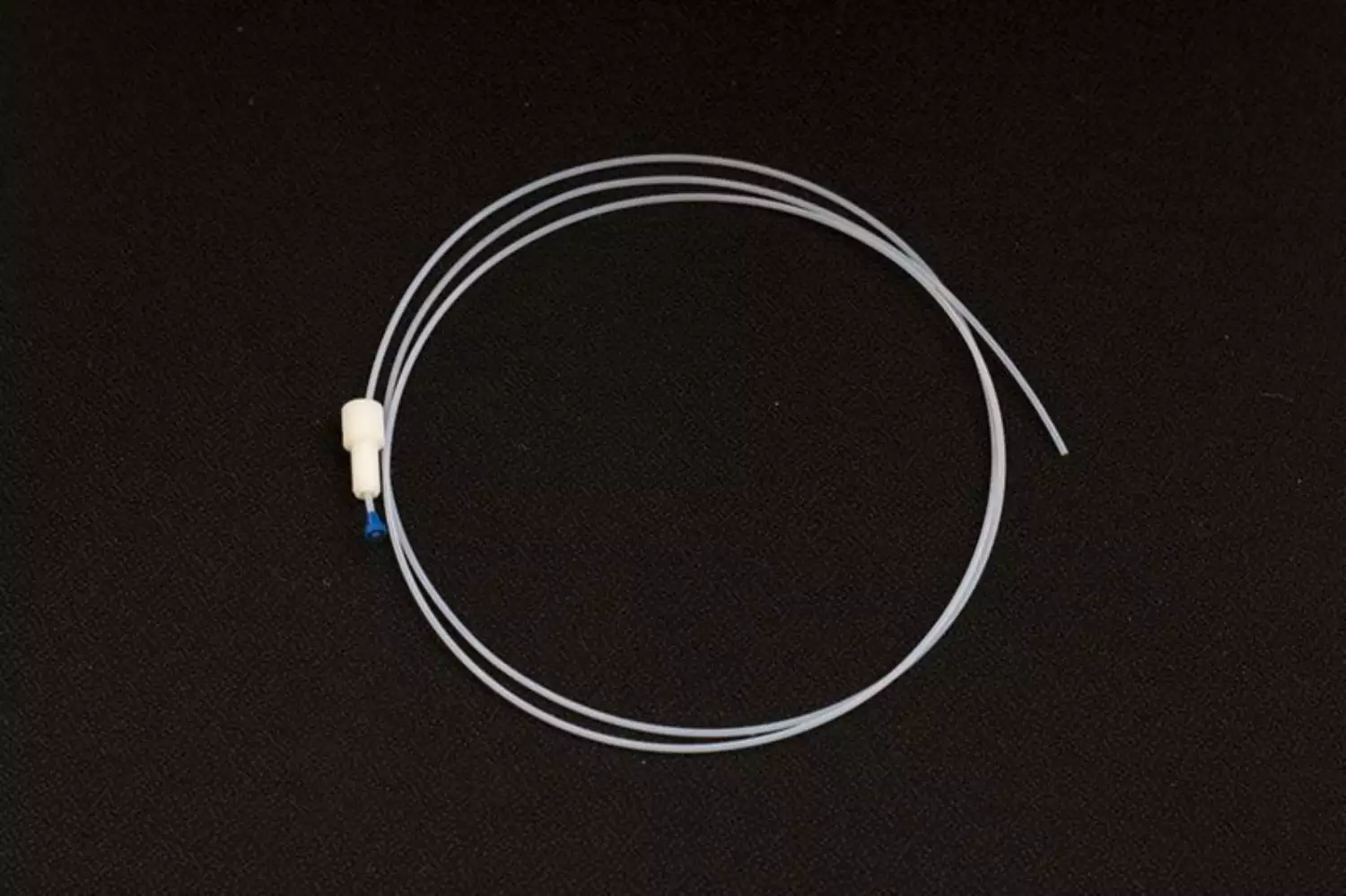

100014Liquid inlet tube-MF length 1 m, OD 1/8"

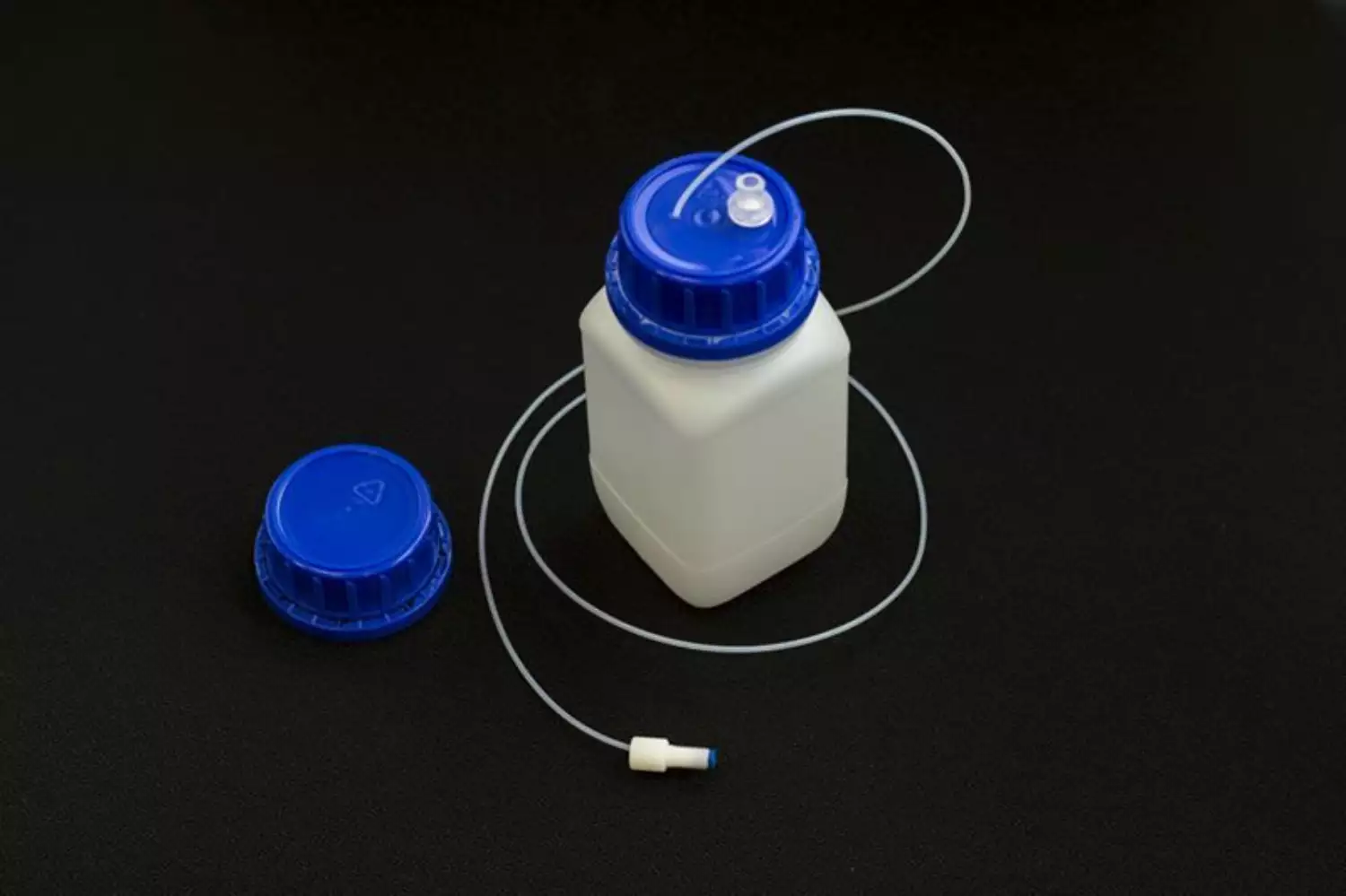

30001Liquid reservoir-MF 250 ml incl. liquid tube length 1 m

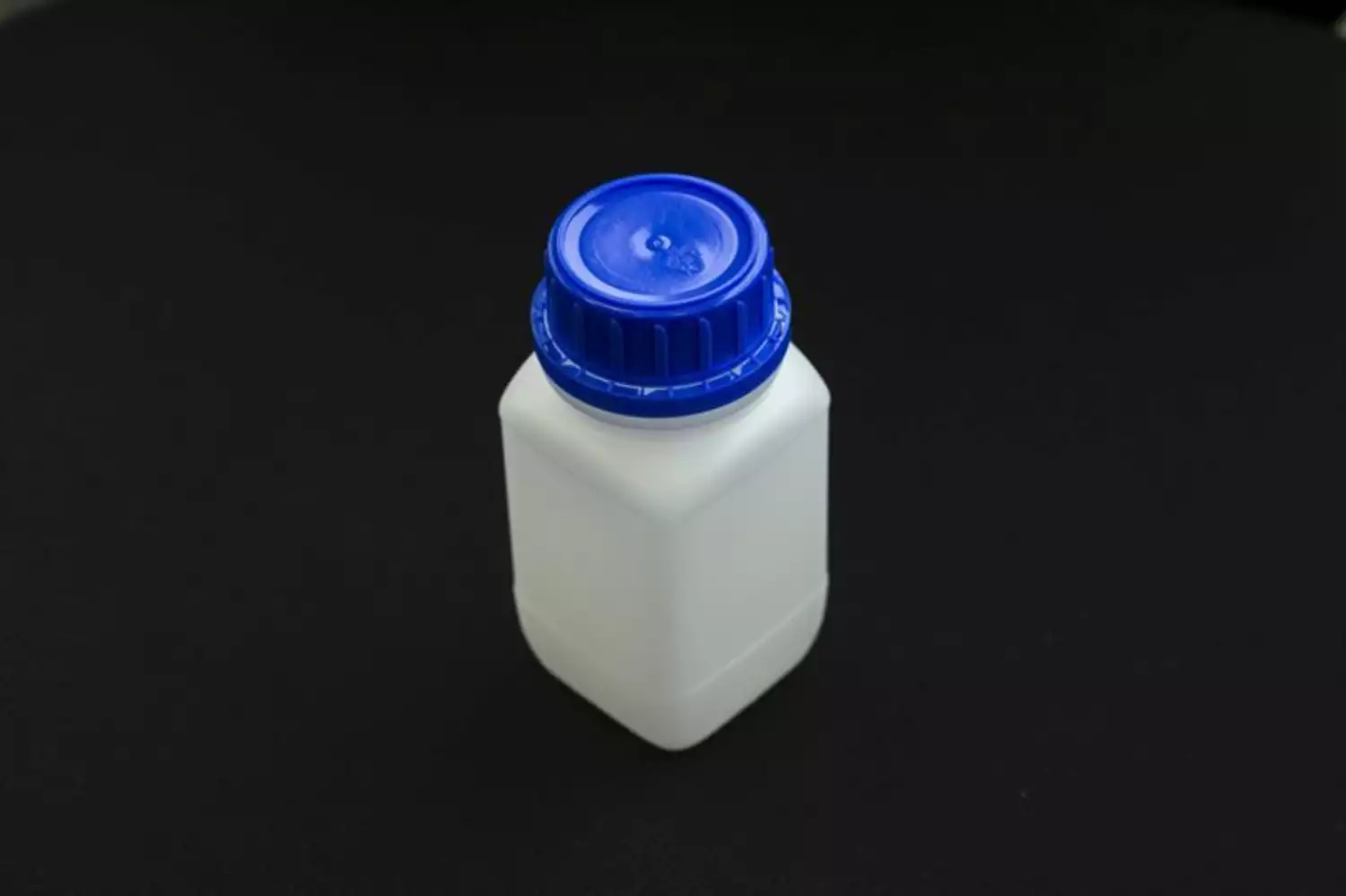

300011Liquid reservoir-MF 250 ml without liquid tube

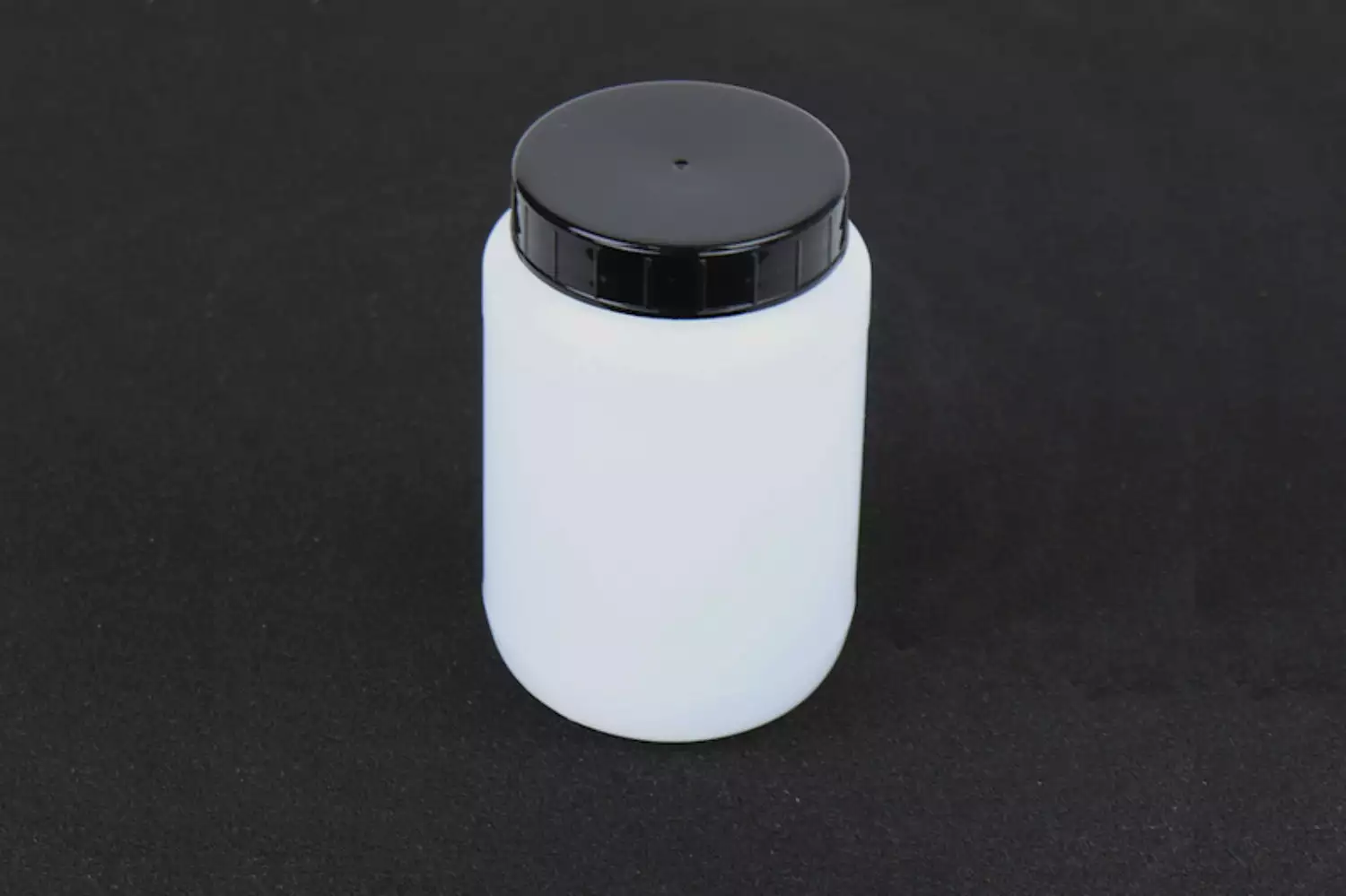

300017Liquid reservoir 500 ml without liquid tube
30002Syringe-MF with connectors for purging
30003Liquid reservoir-MF 500 ml incl. liquid tube length 1 m

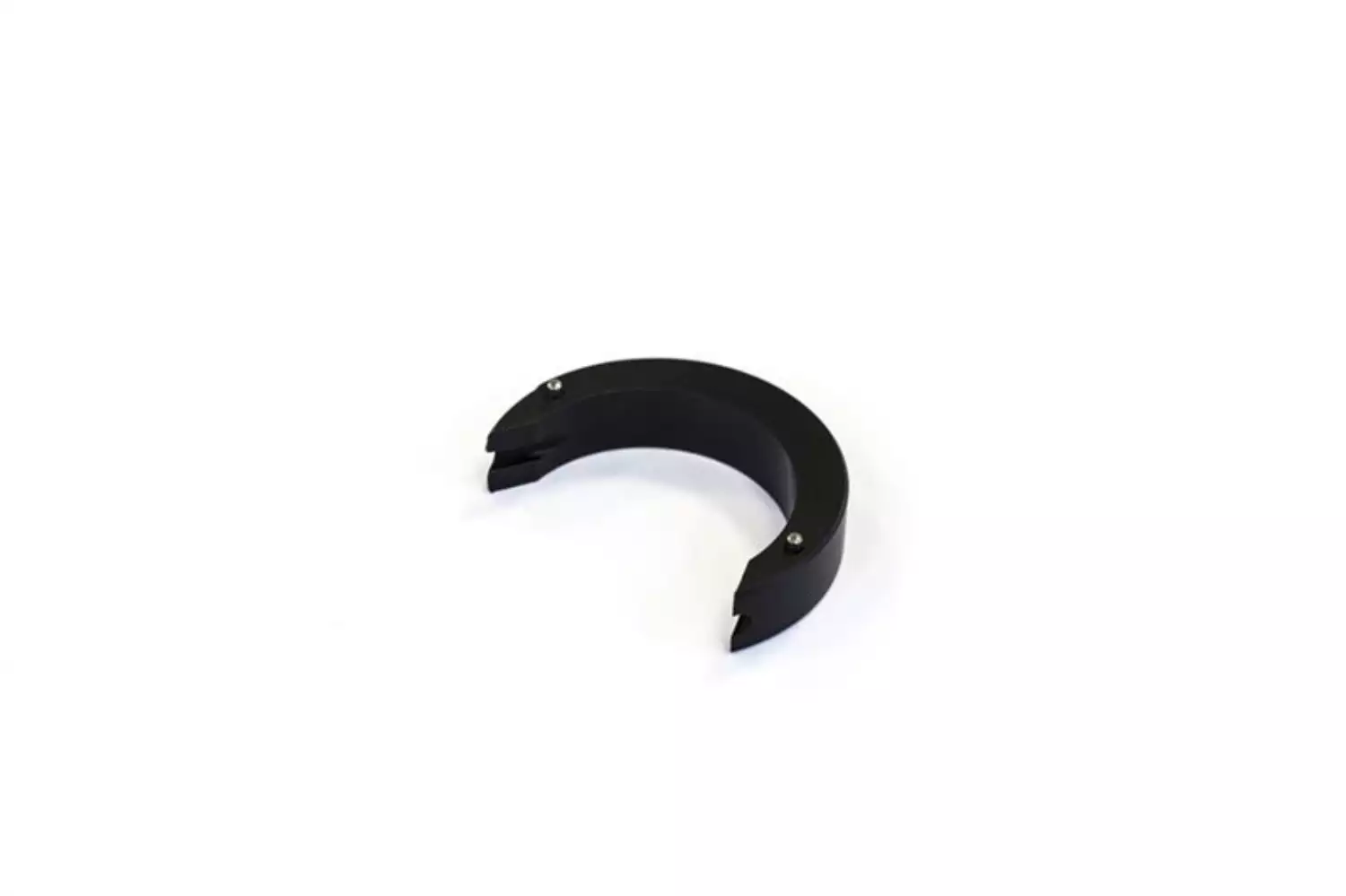

20001Tube saddle for tube 0,5 x 1,6 mm (IDxWT)
20002Tube saddle for tube 0,8 x 1,6 mm (IDxWT)
20003Tube saddle for tube 1,6 x 1,6 mm (IDxWT)
200031Tube saddle for tube 0,25 x 1,6 mm (IDxWT)

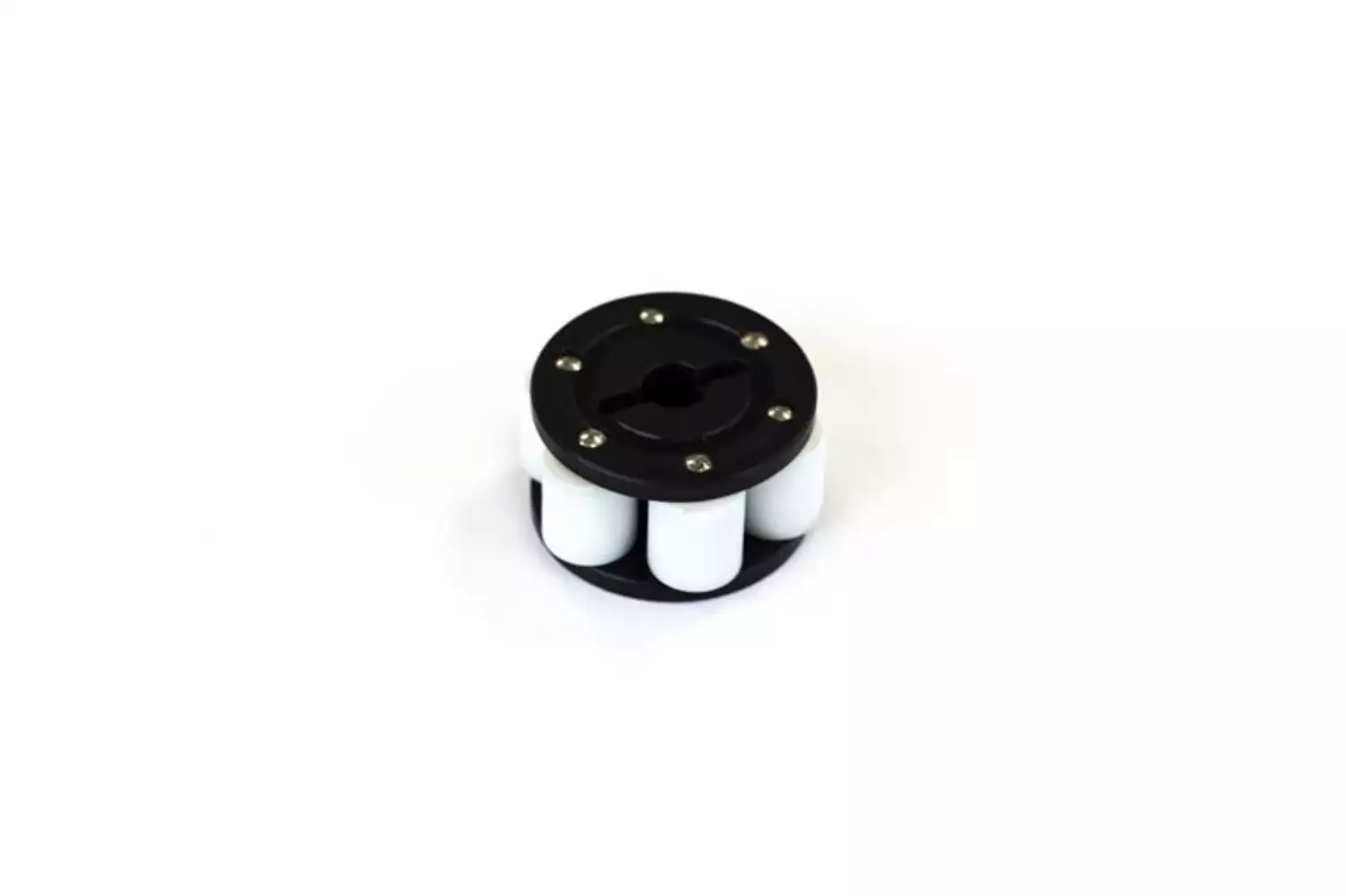

200046Rotor 6R for peristaltic pump

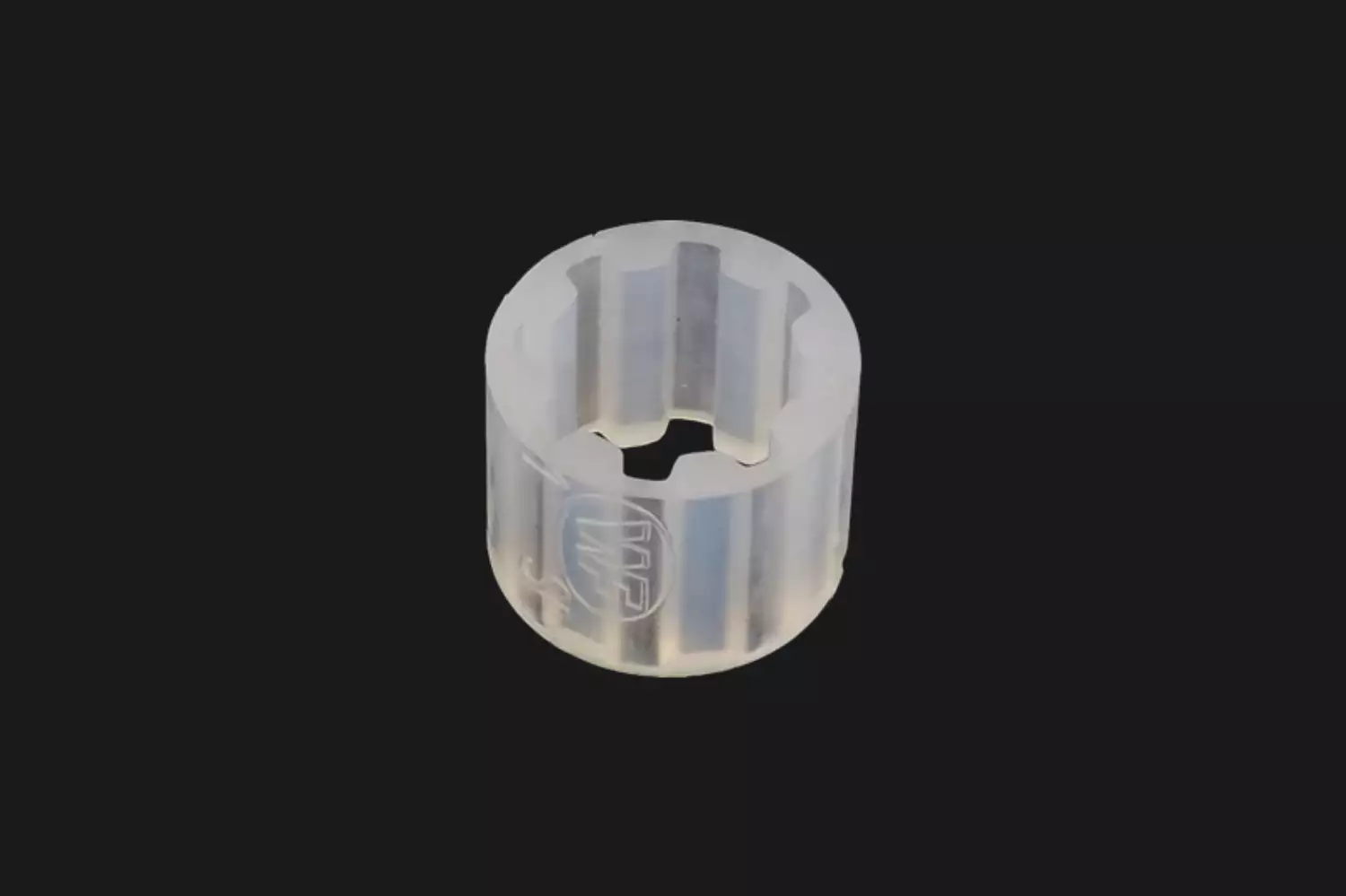

200051Coupling sleeve for peristaltic pump

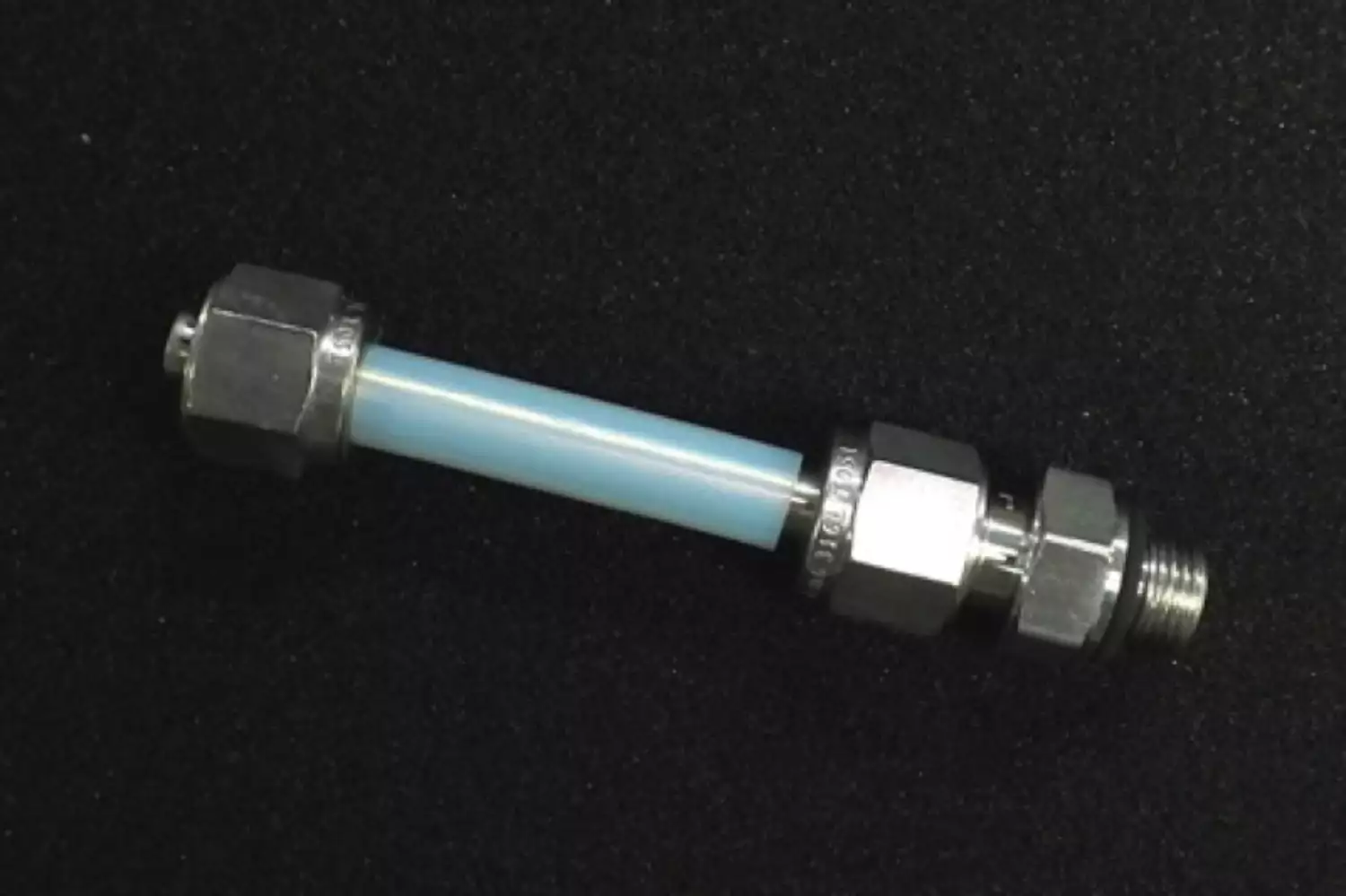

200071Connector Evaporator-Sampling Cell (G1/8”-6 mm, stainlesssteel, PTFE-cover, length 65 mm)

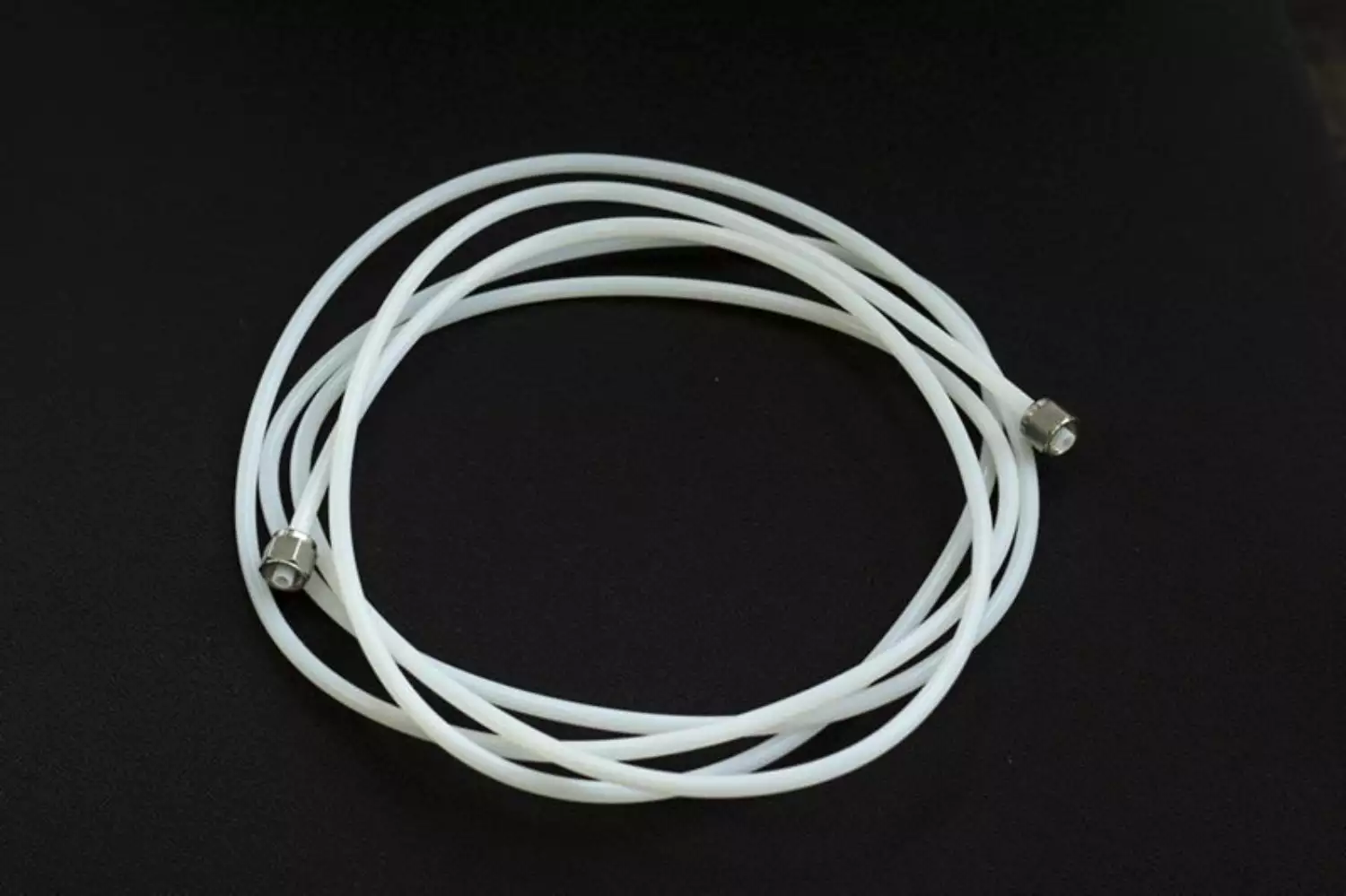

20008Carrier gas tube 6 mm (OD), incl. press fitting length 3 m

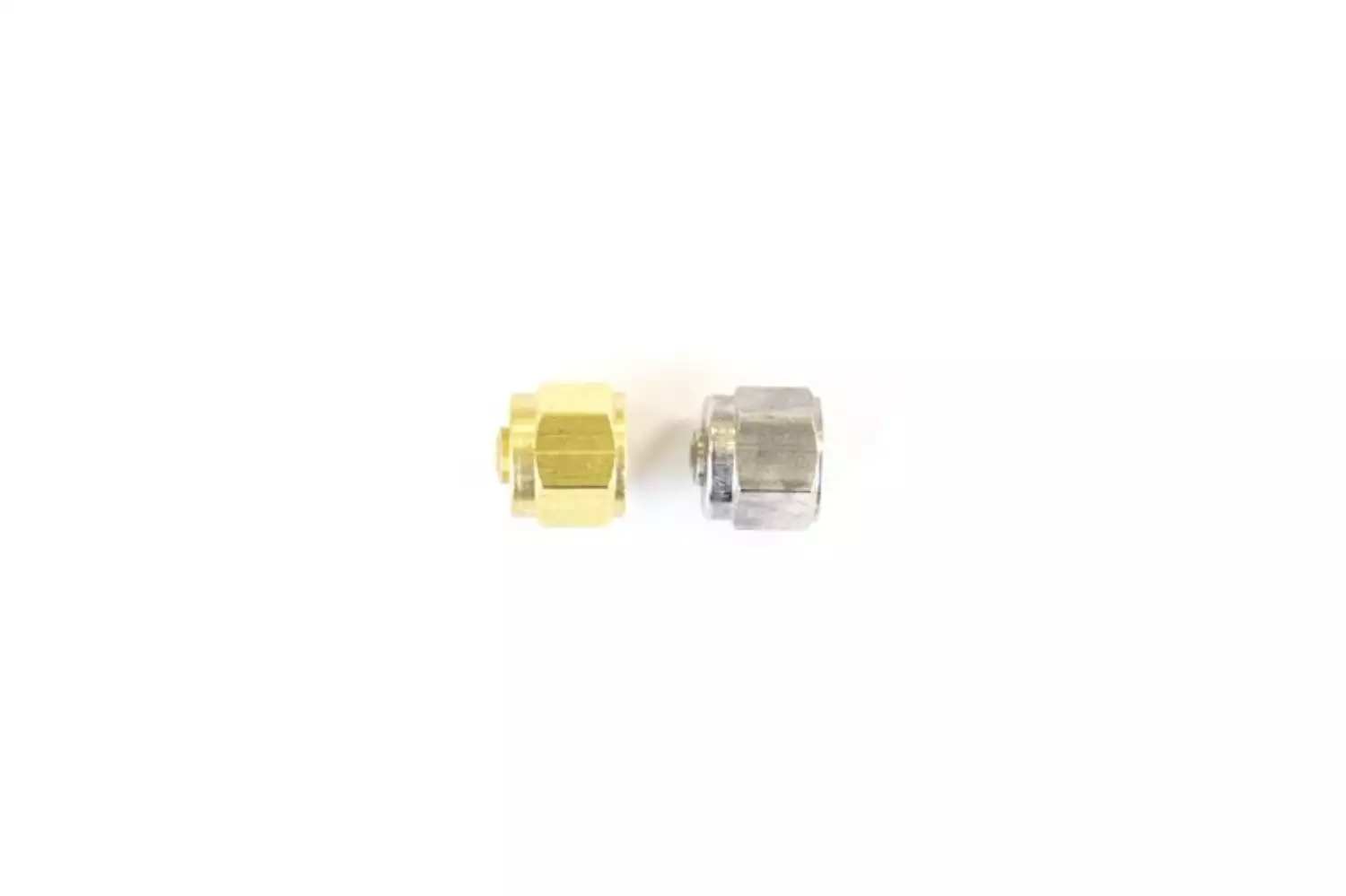

200081-6SS, -6MS, -14SS, 14MSPlug gas 6 mm or ¼“, Stainless steel or brass

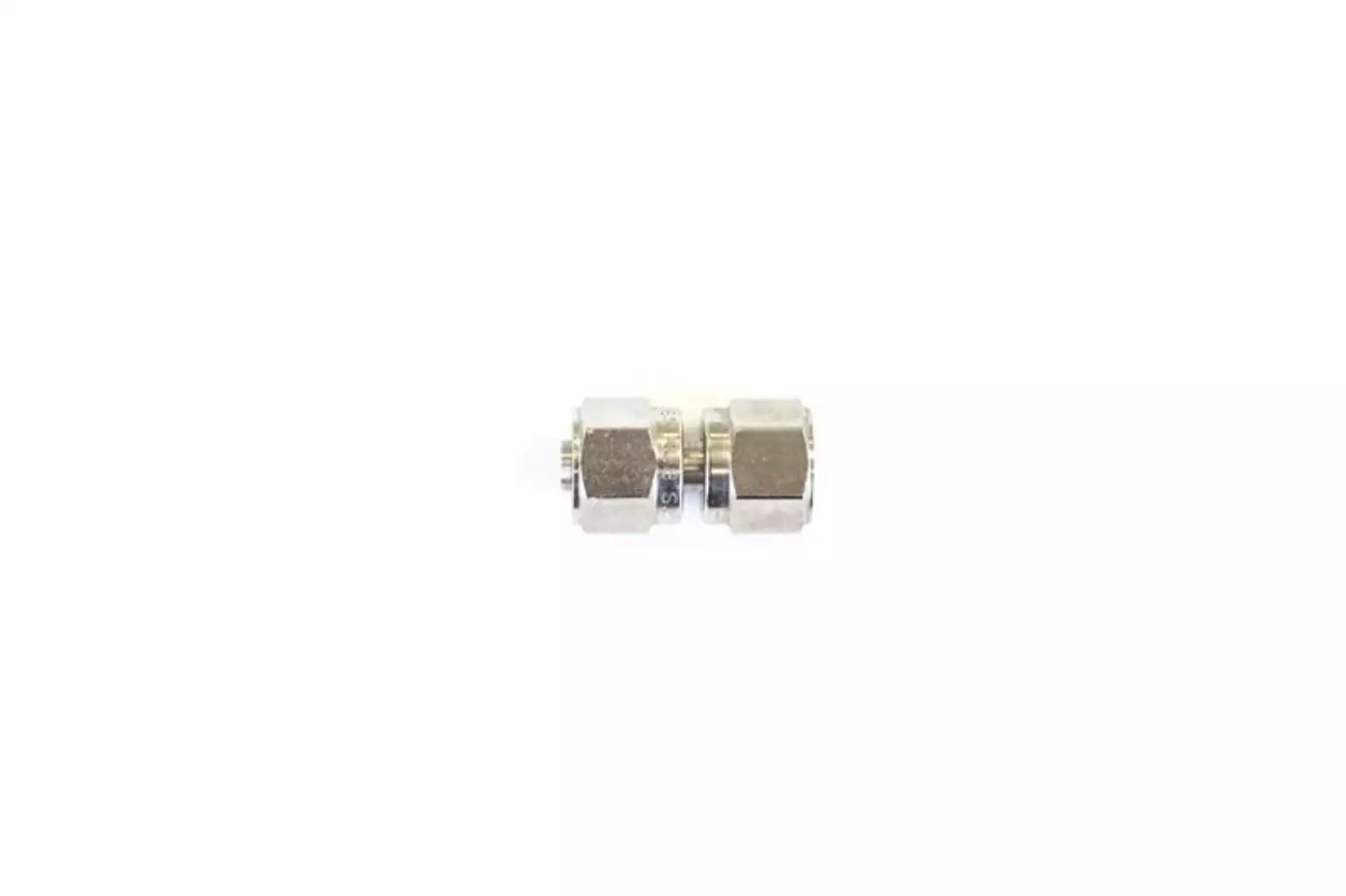

200082-6, -14Connector outlet evaporator 6 mm or ¼“

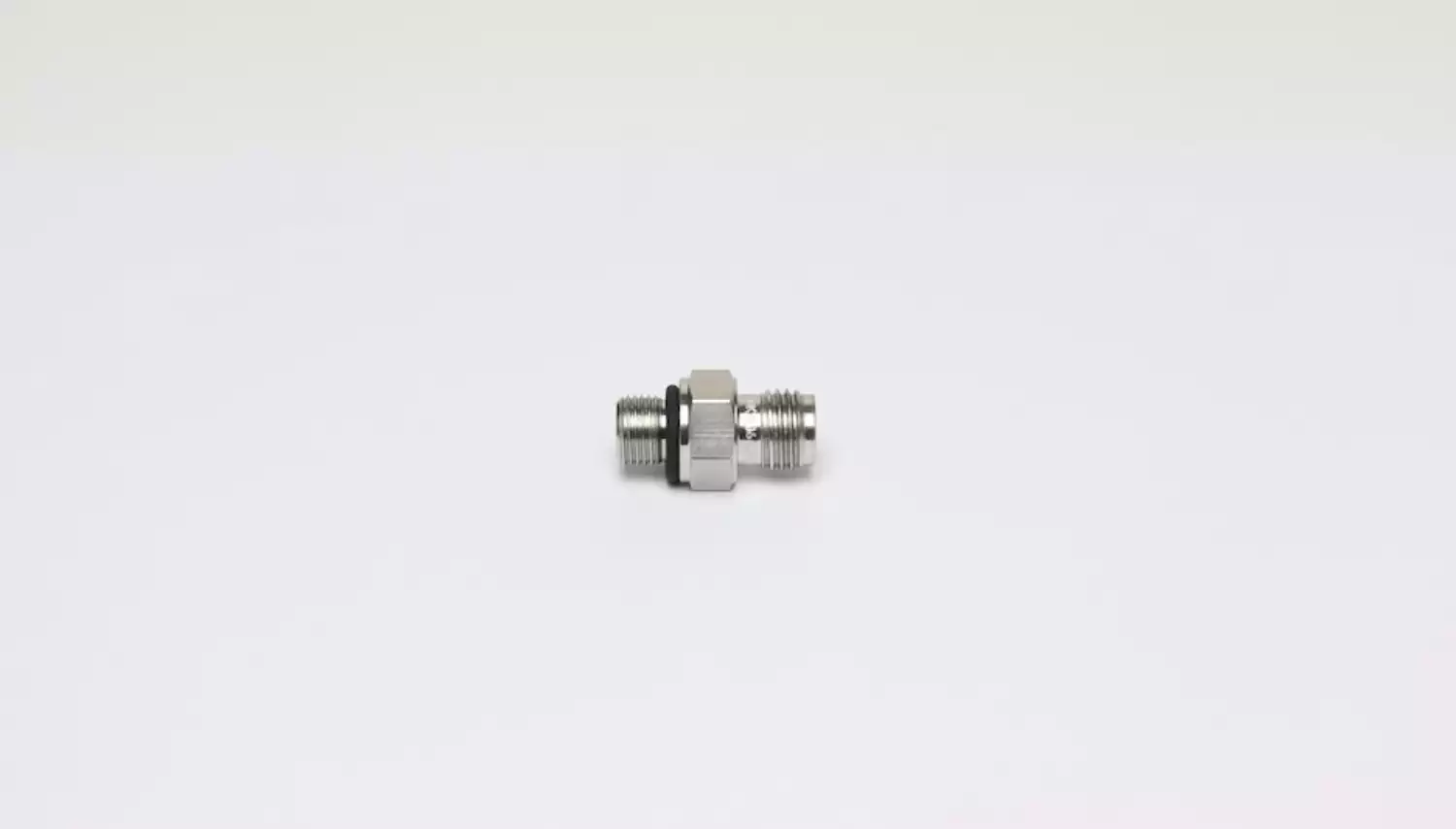

200083Screw-in gas inlet for evaporator

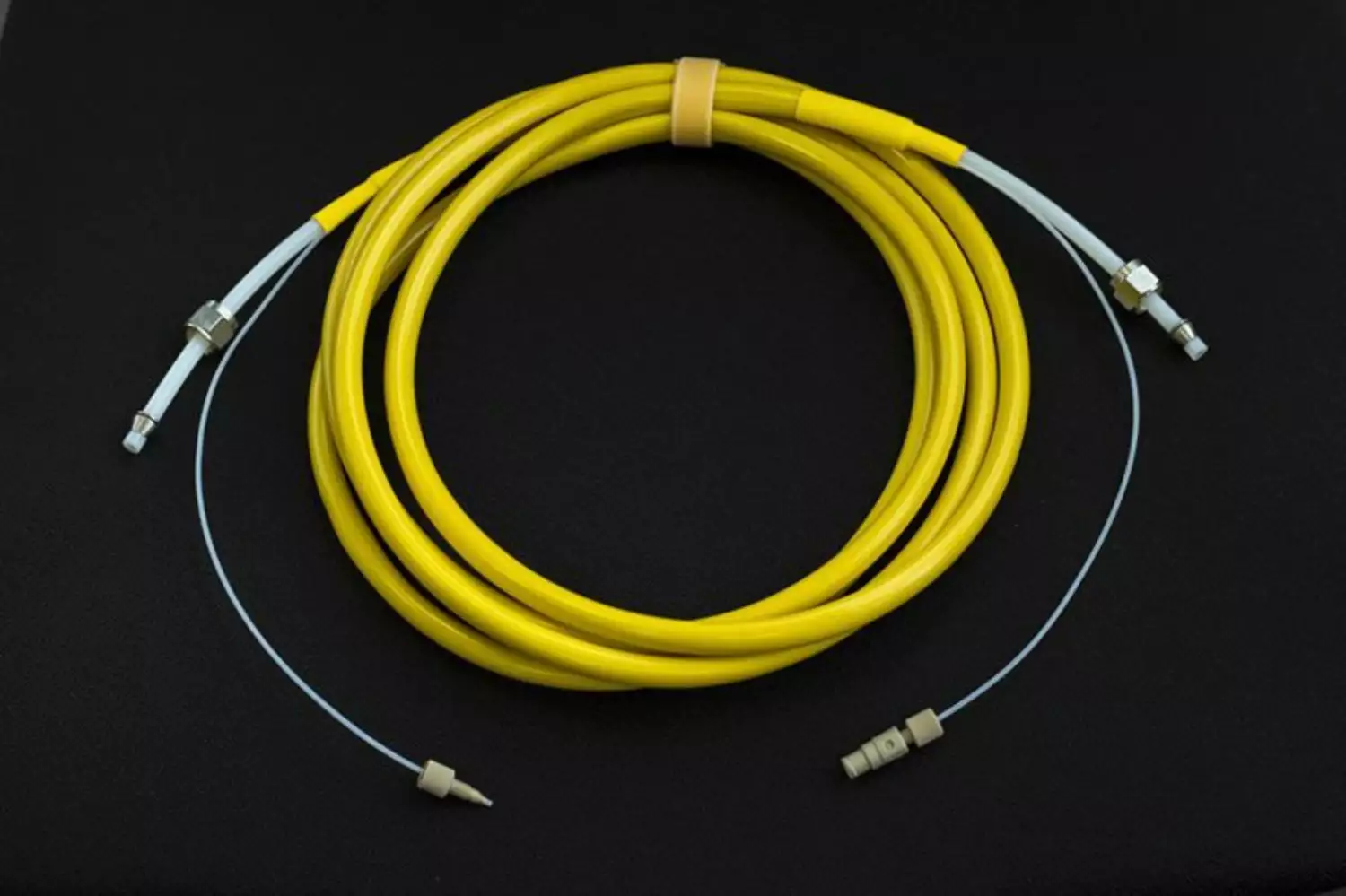

200089Supply line evaporator gas/liquid combined length 3 m

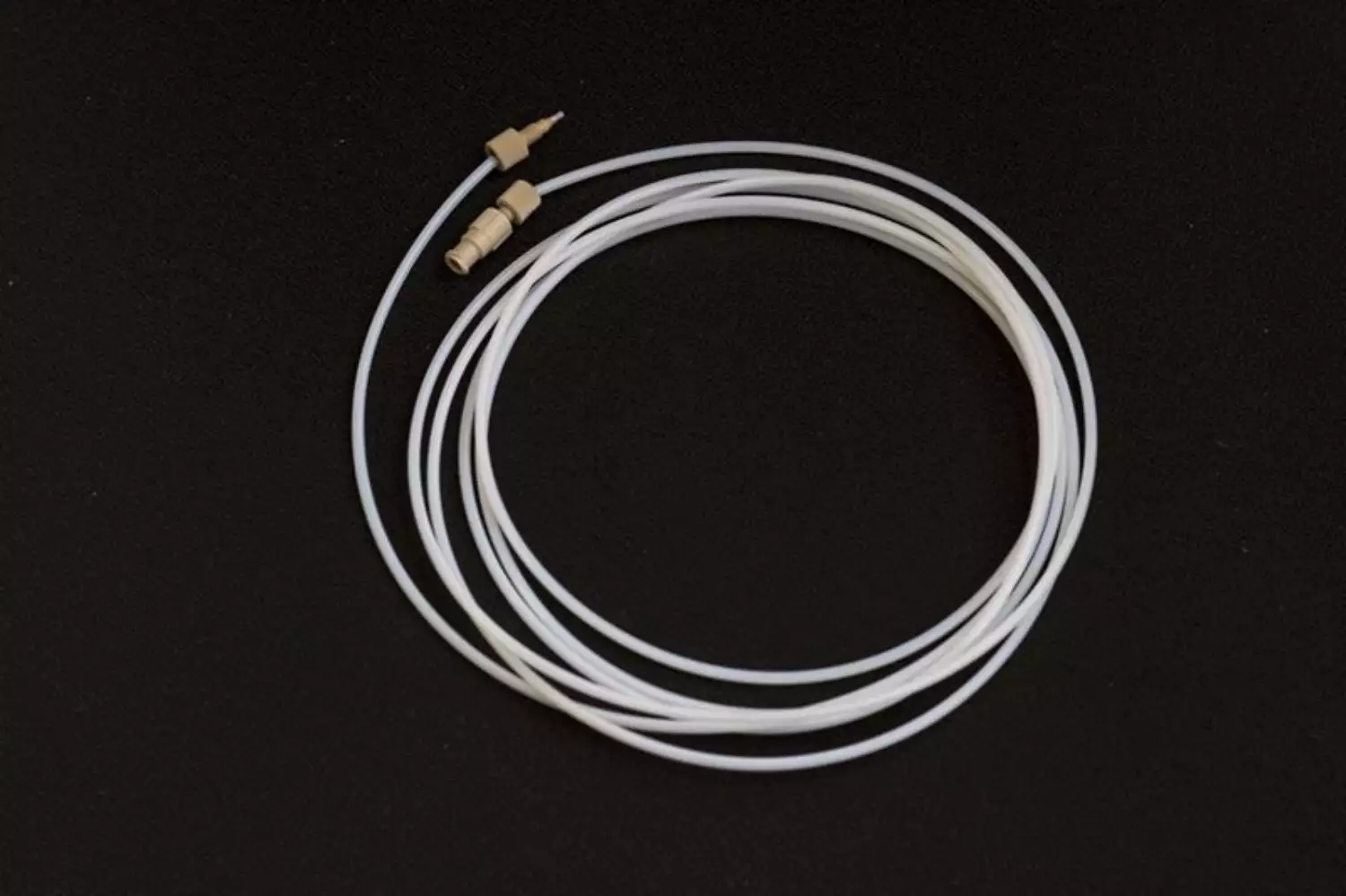

20009Liquid tube 0,7 x 0,45 (IDxWT), incl. connectors, incl. filter connection on one side length 3 m

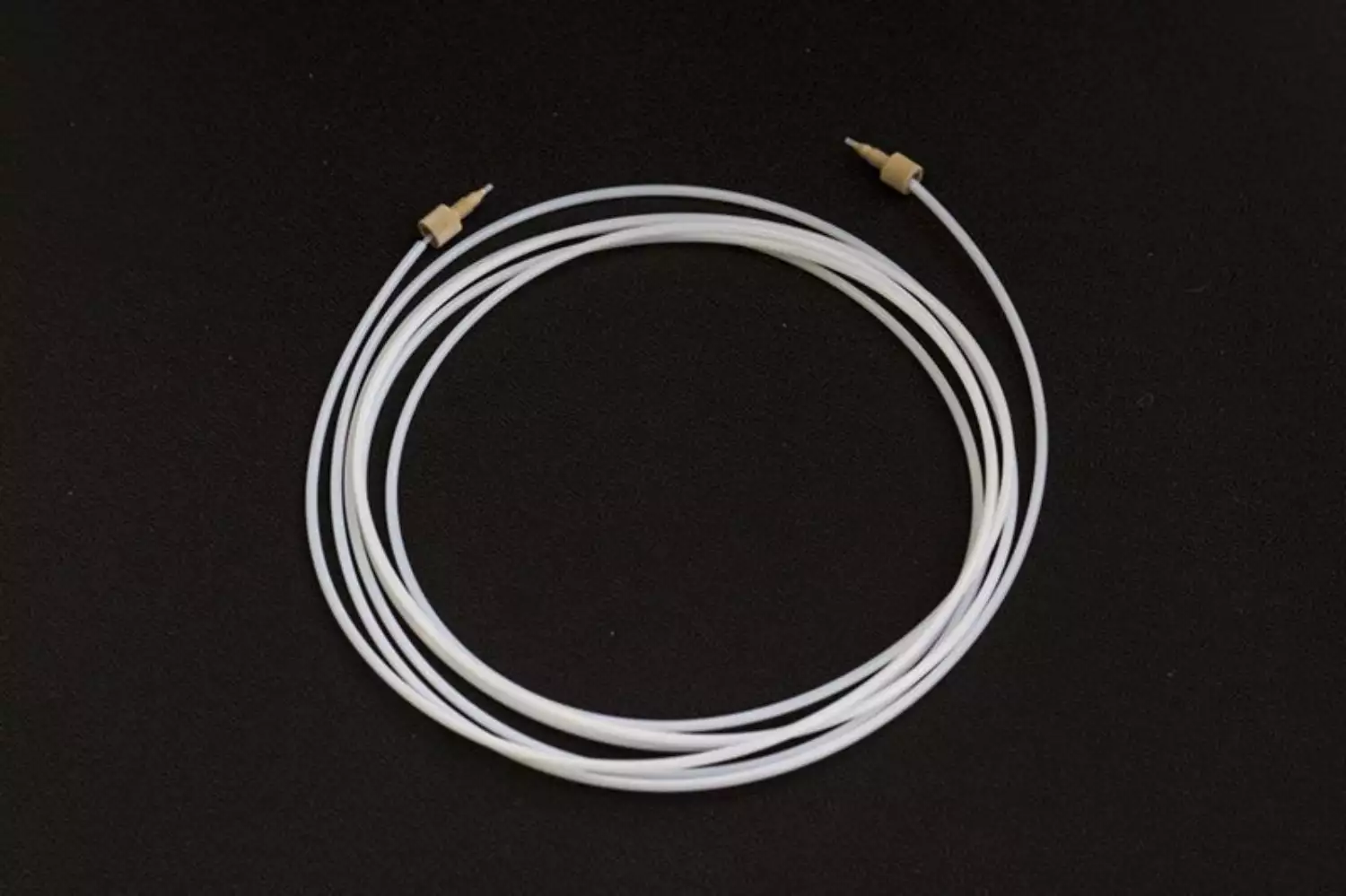

200091Liquid tube 0,7 x 0,45 (IDxWT), incl. connectors, without filter connection Length 3 m
200091-6MLiquid tube 0,7x0,45 mm (IDxWT), incl. connectors, without filter connection Length 6 m

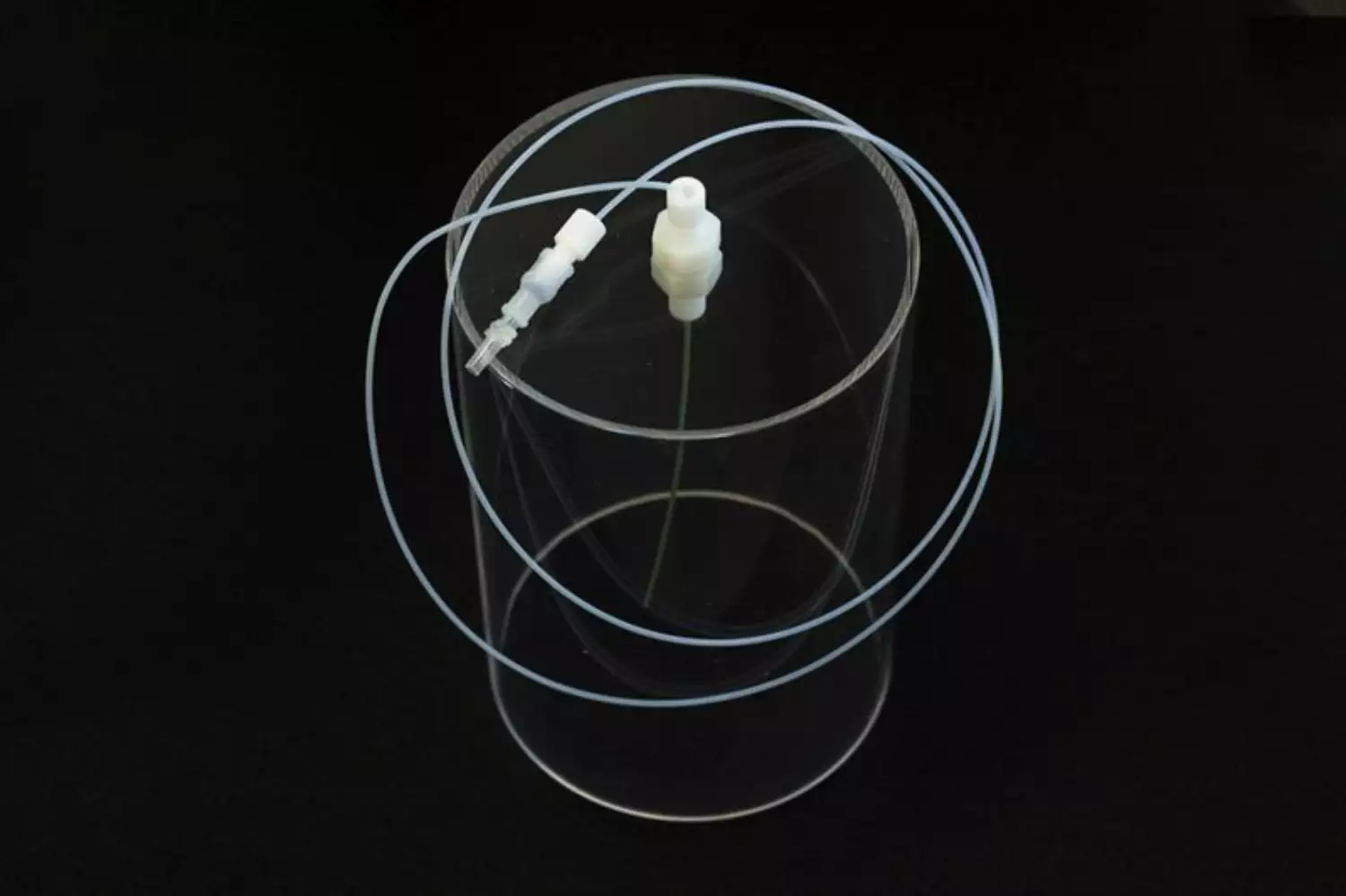

20100Draft shield with liquid tube balance-pump, incl. connector length 1 m

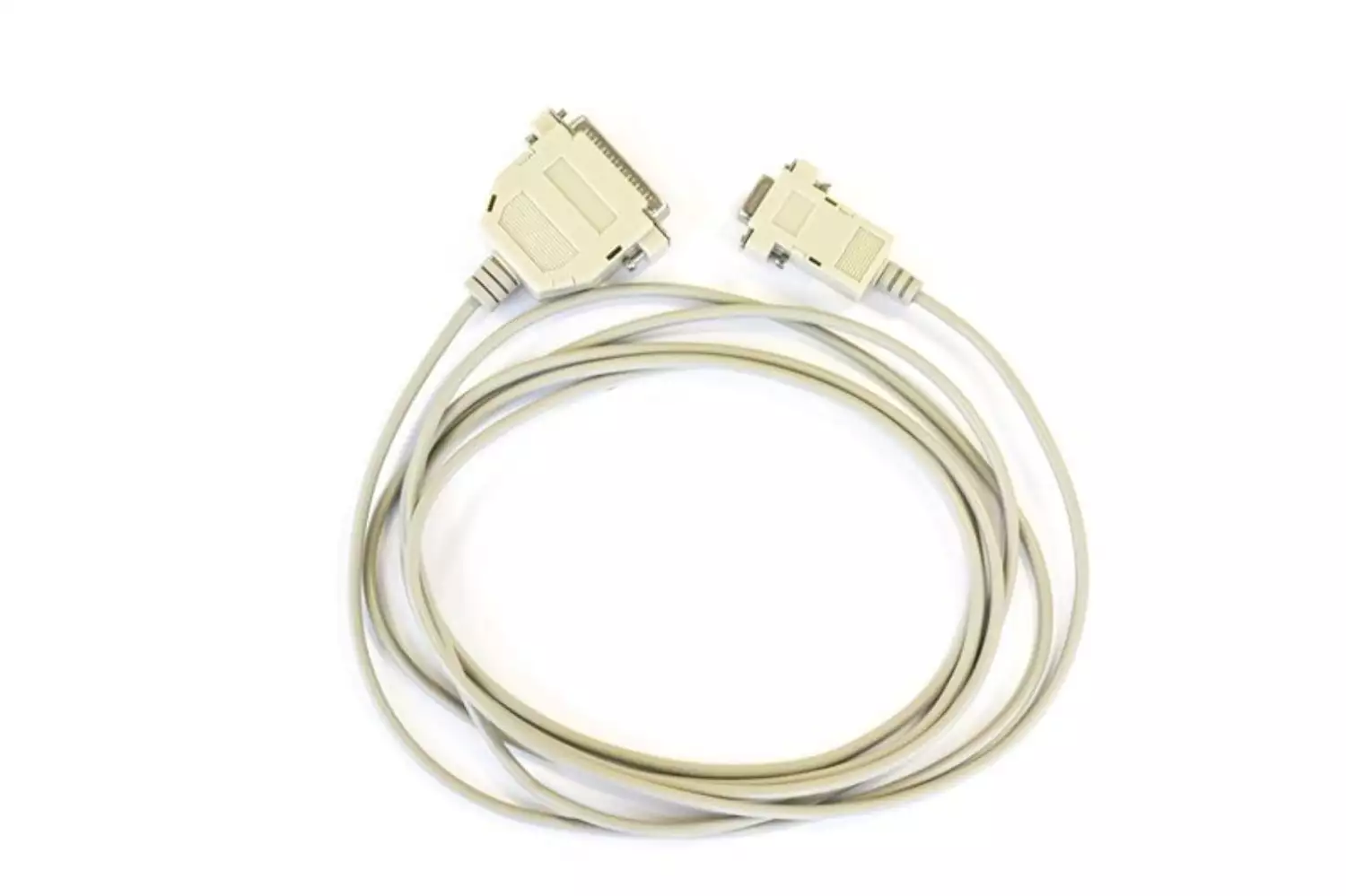

20102Interface cable balance for 300 g balance

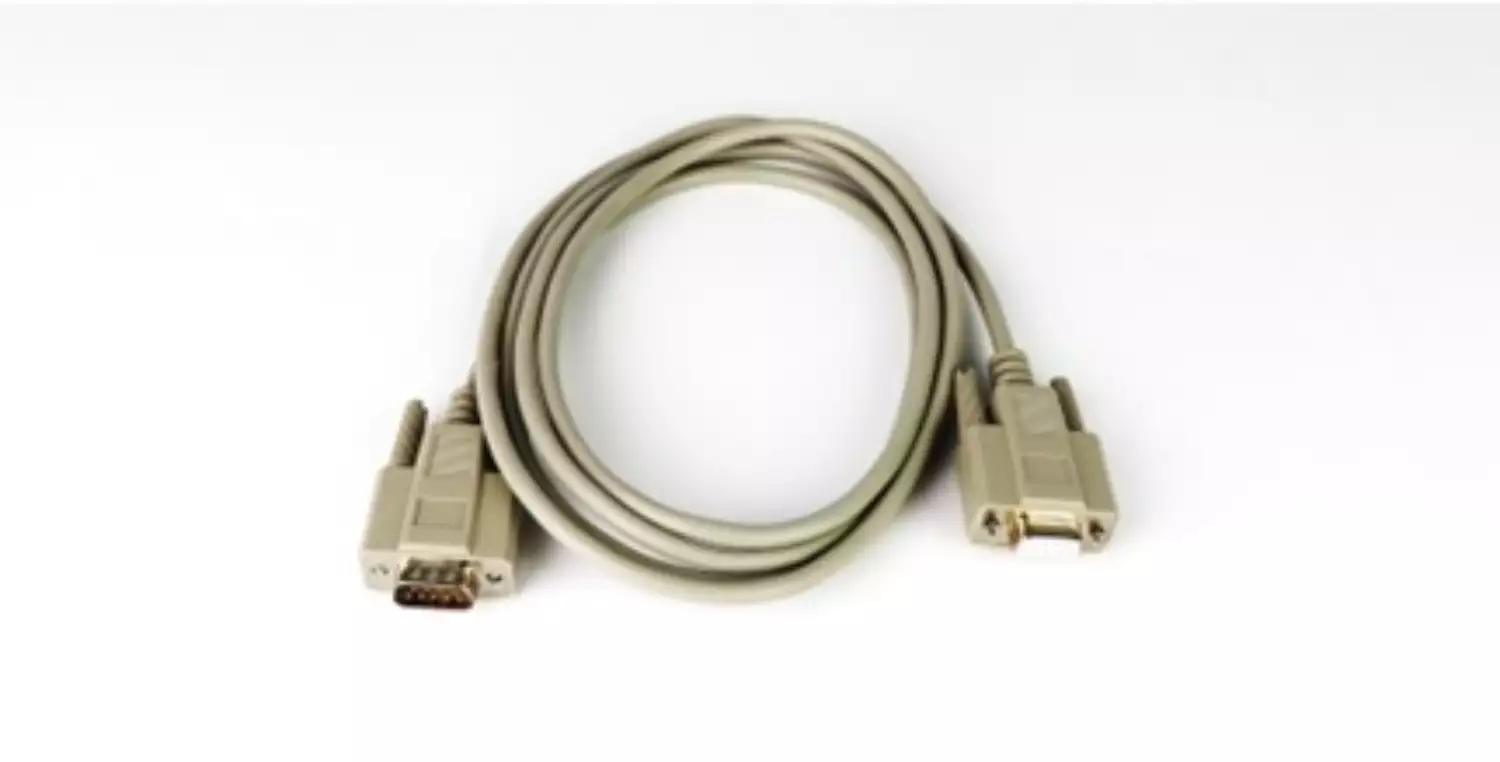

20103Interface cable balance RS232 for 650 g balance

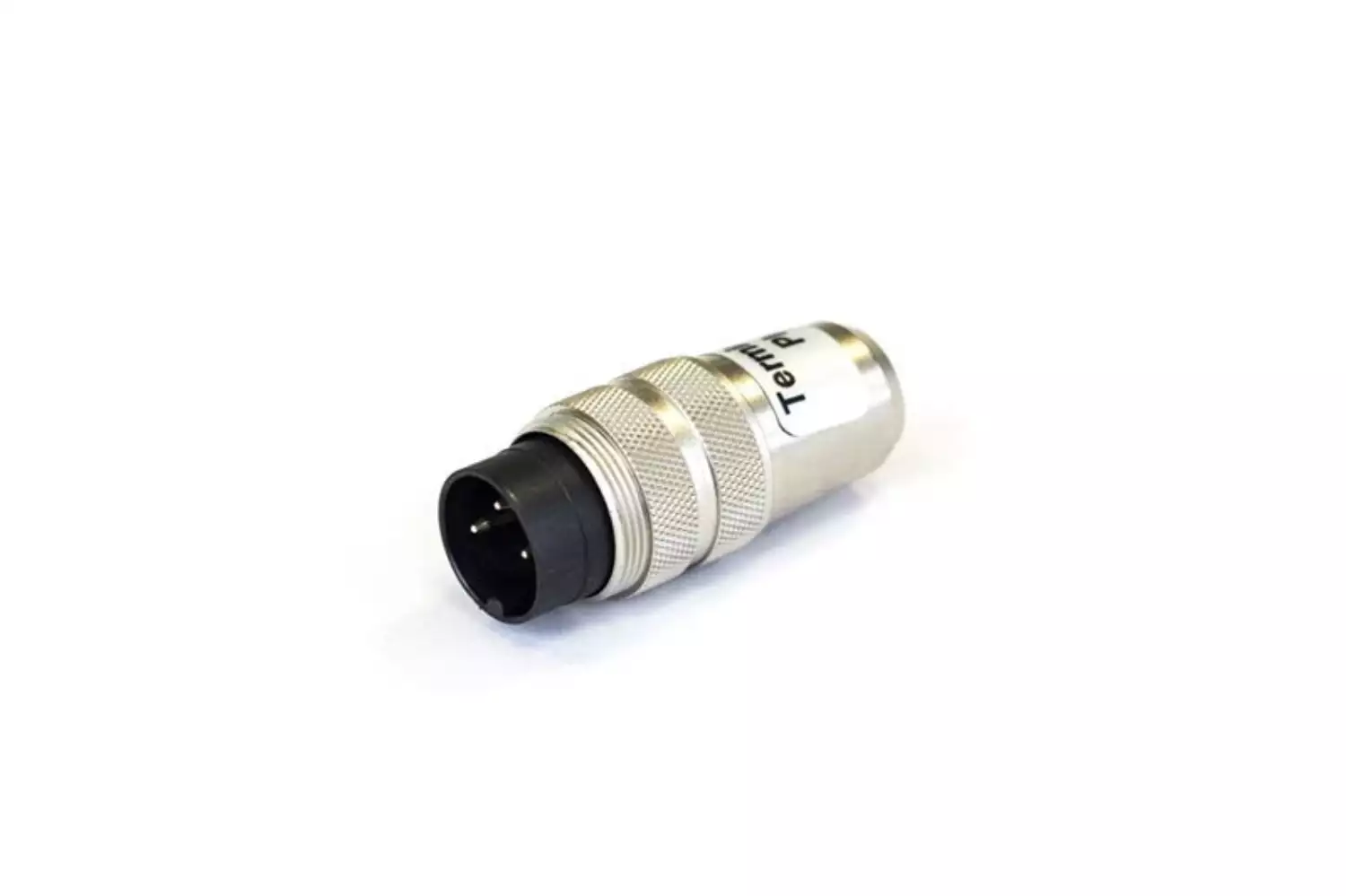

20201Termination plug 3 poles, evaporator

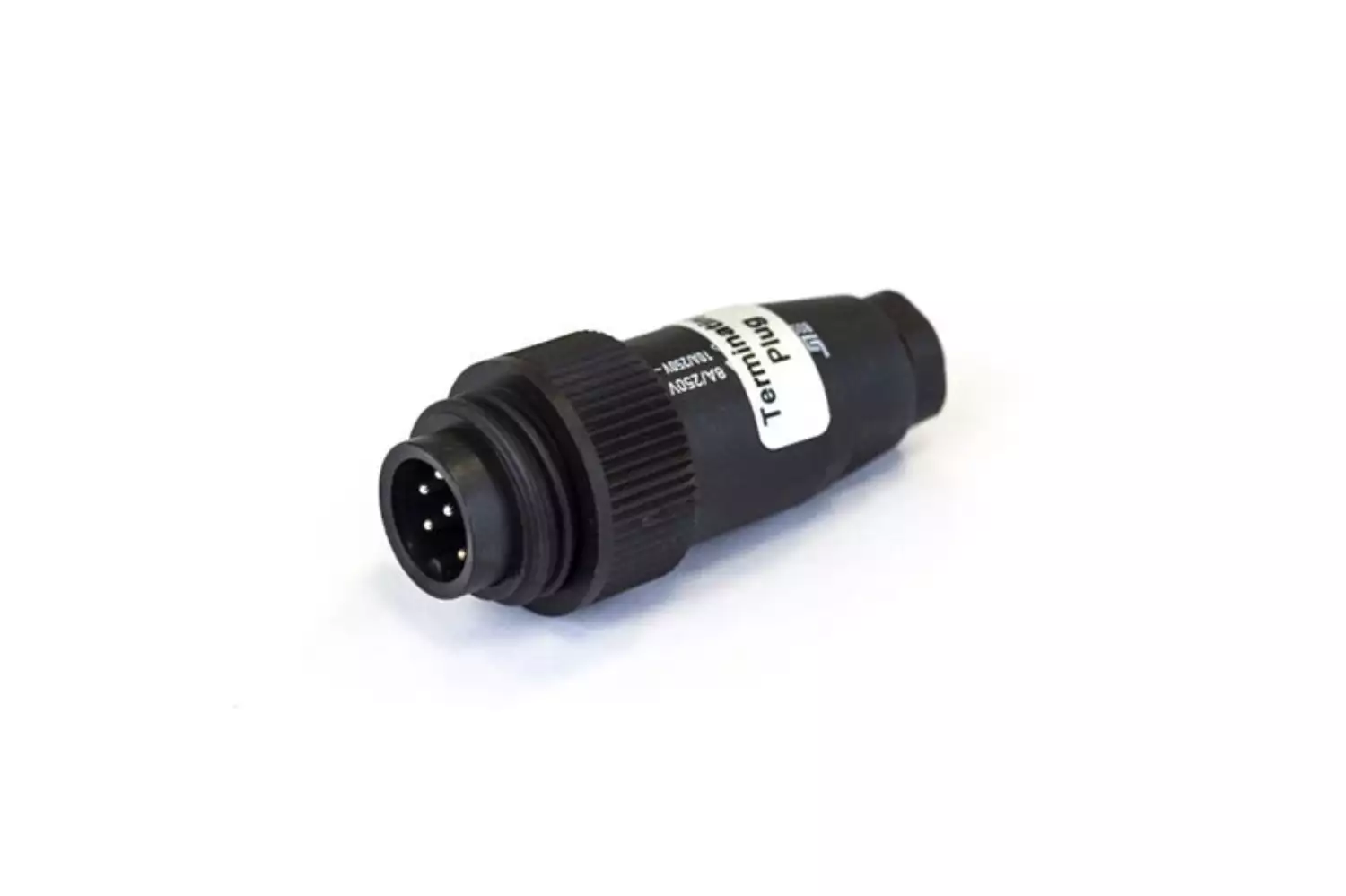

20202Termination plug 7 poles, heated line

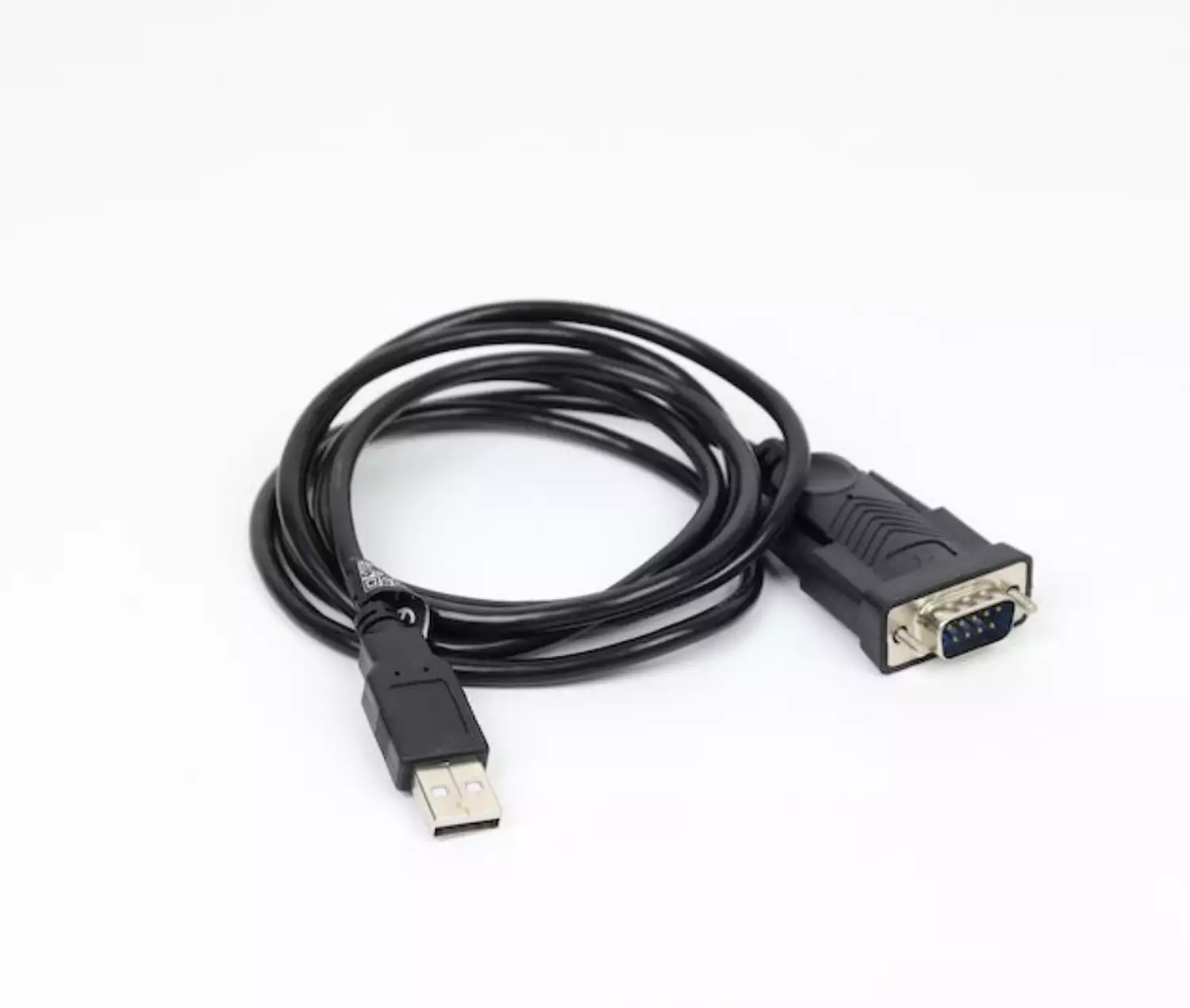

20203RS232-USB-Converter

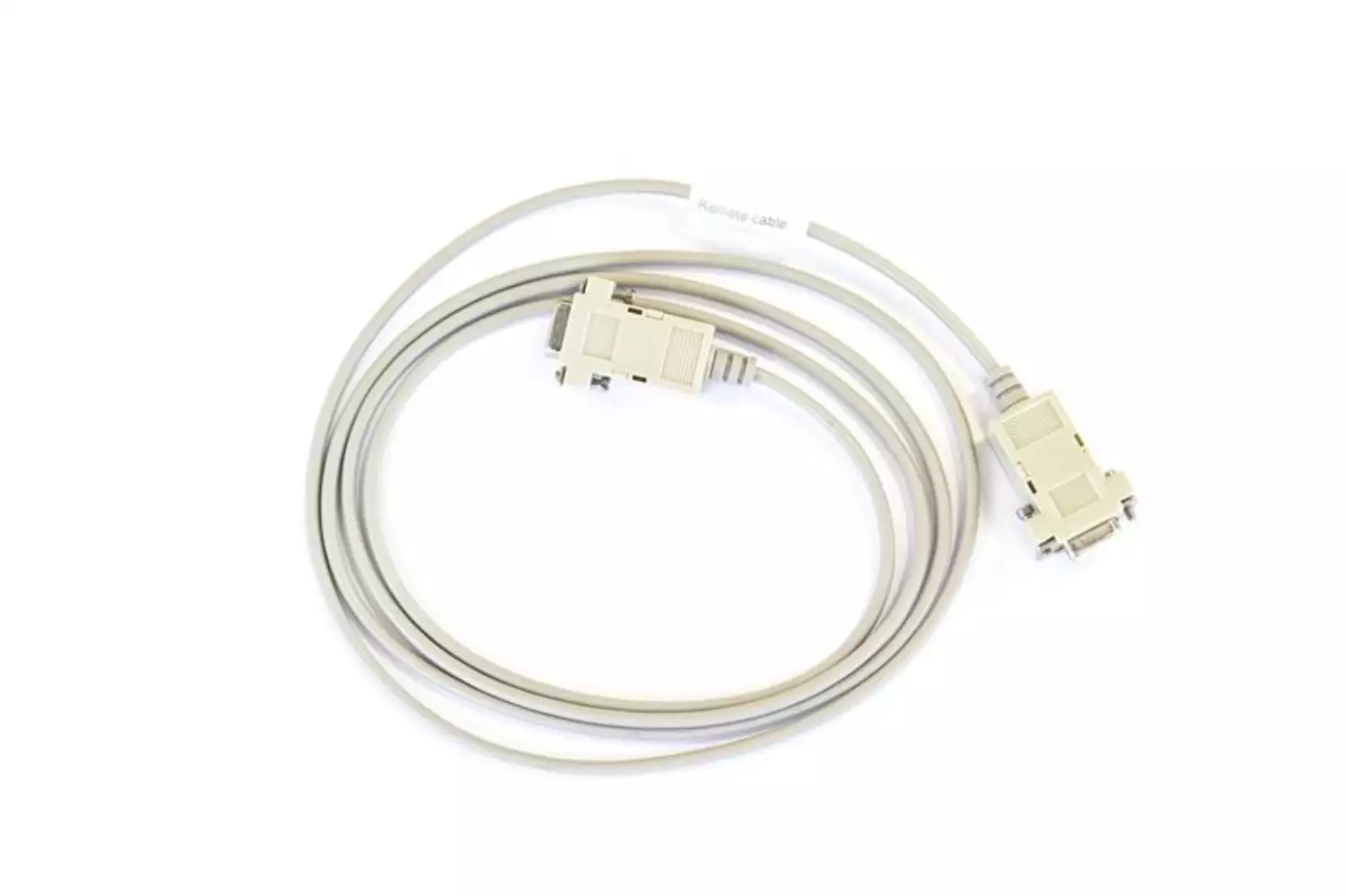

202031RS232-cable

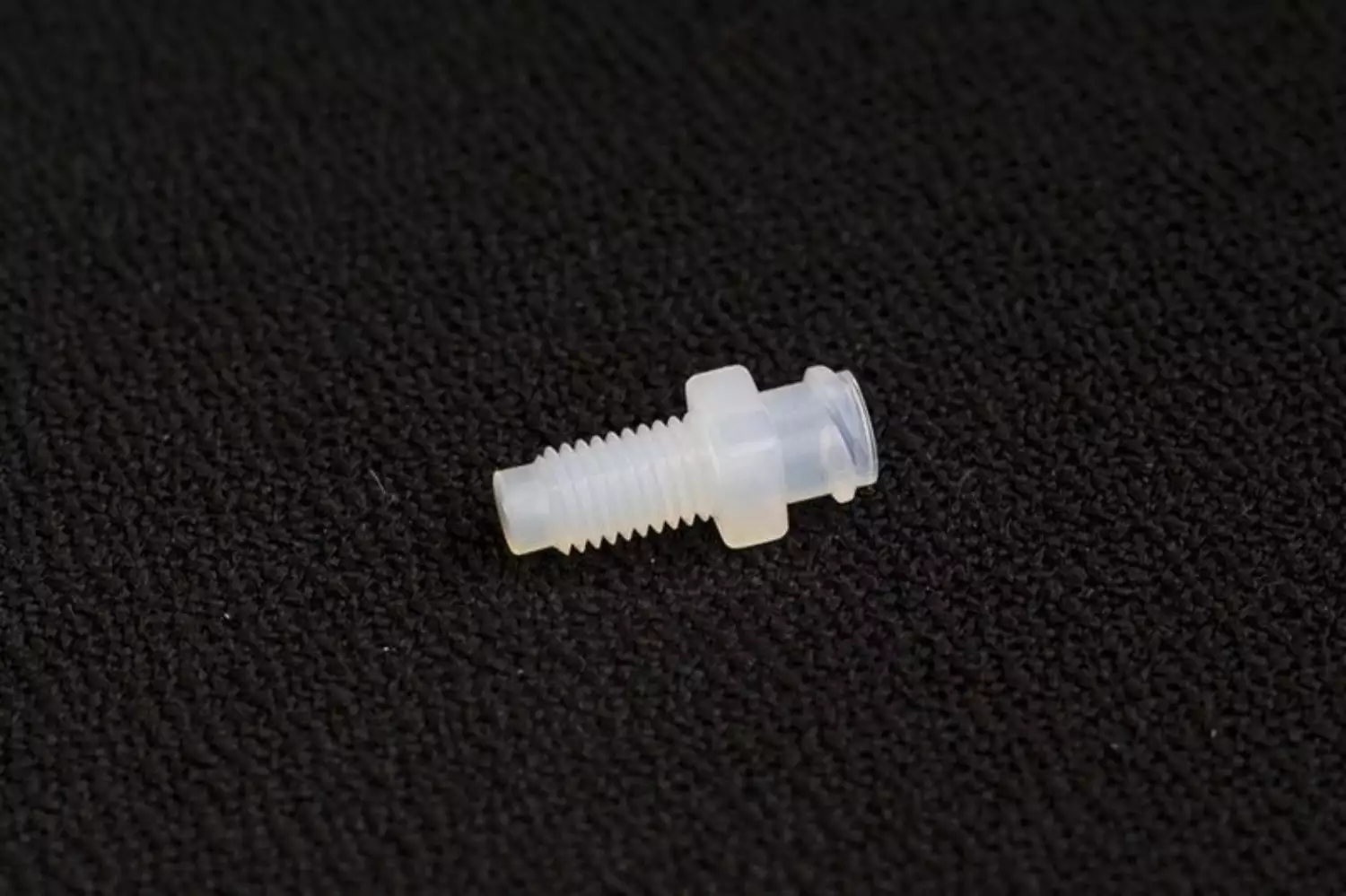

20204Adapter for liquid filter at device

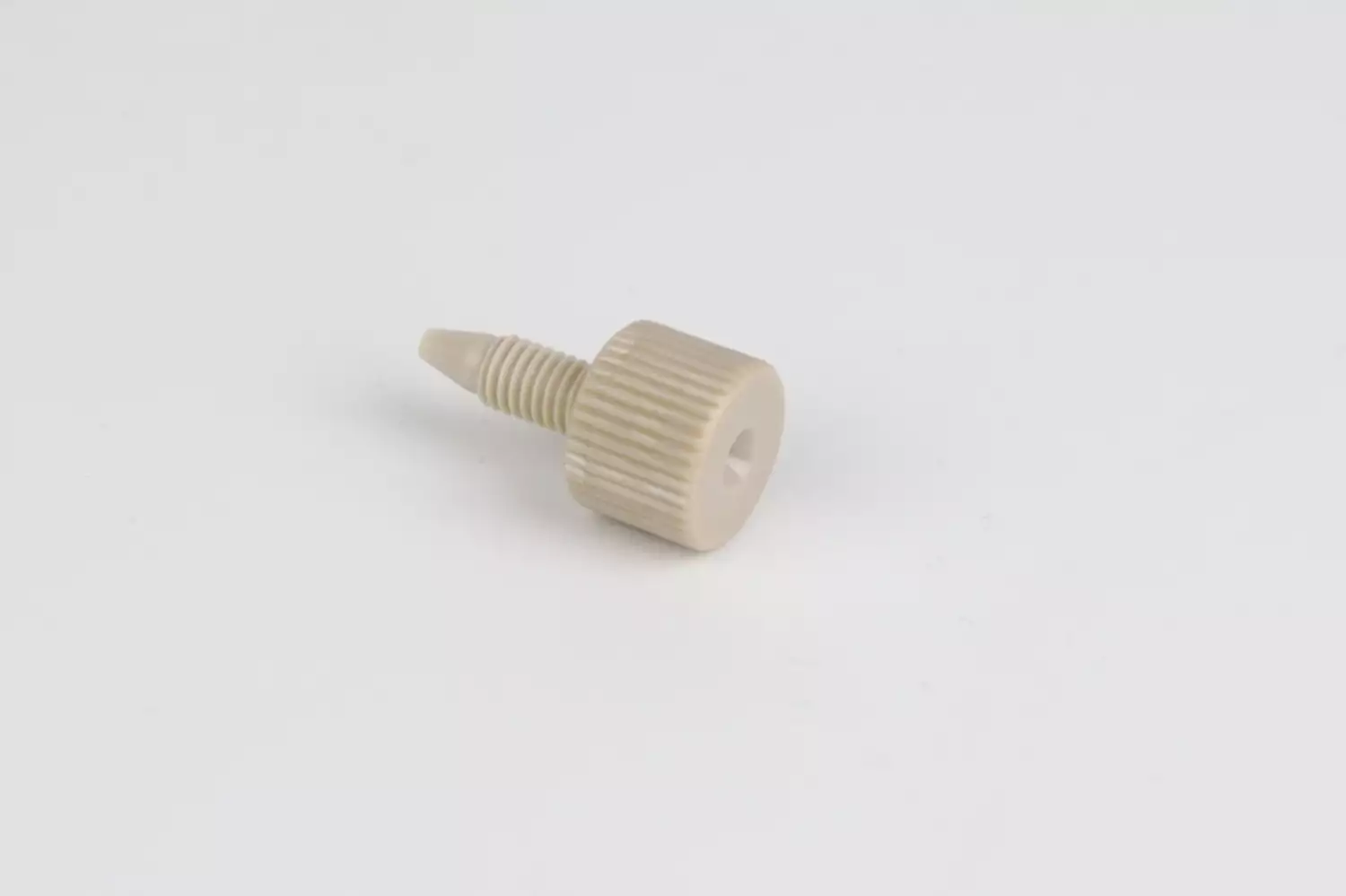

20205-1Fitting for liquid tube to evaporator

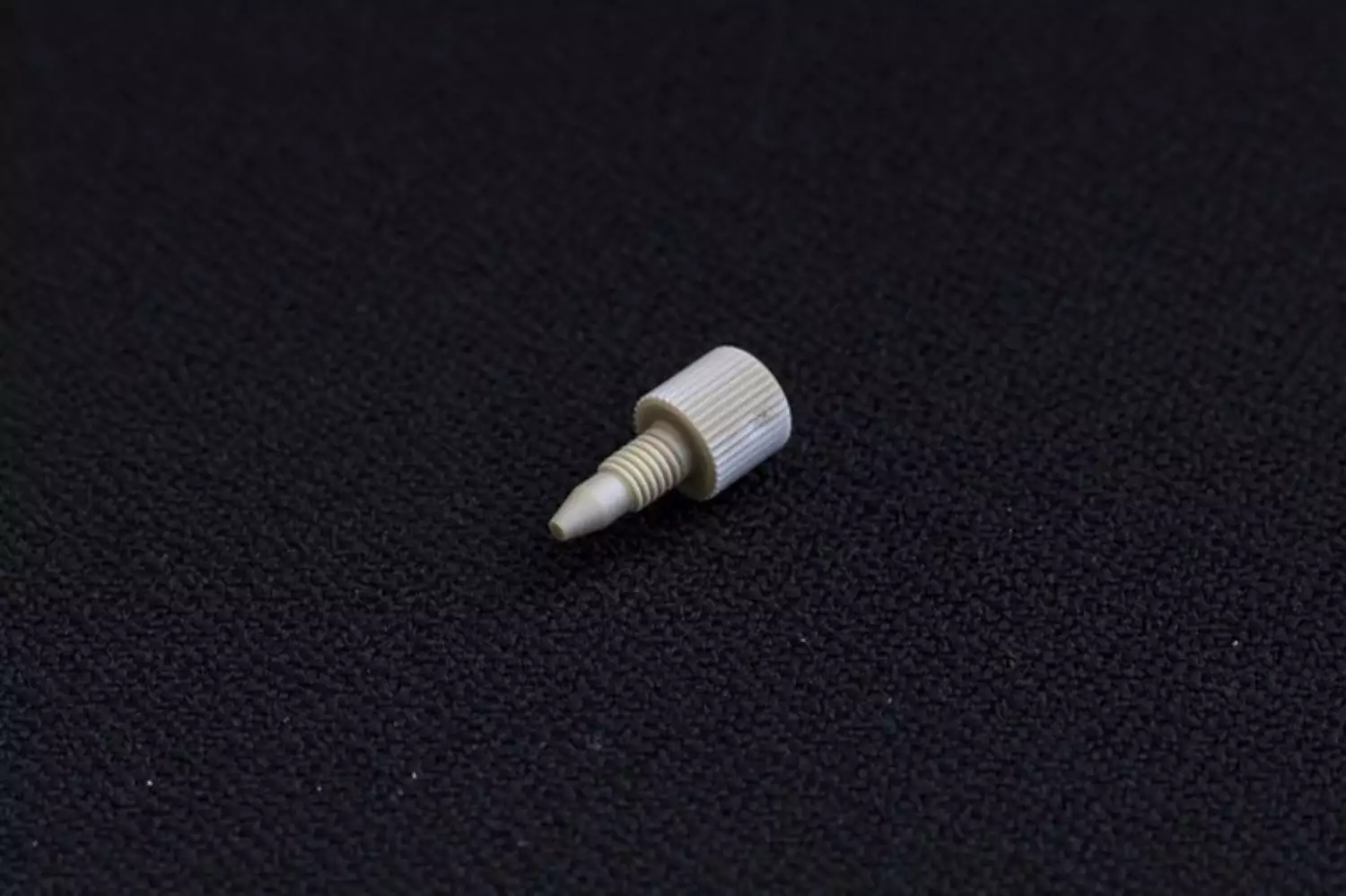

20206Closure for liquid port

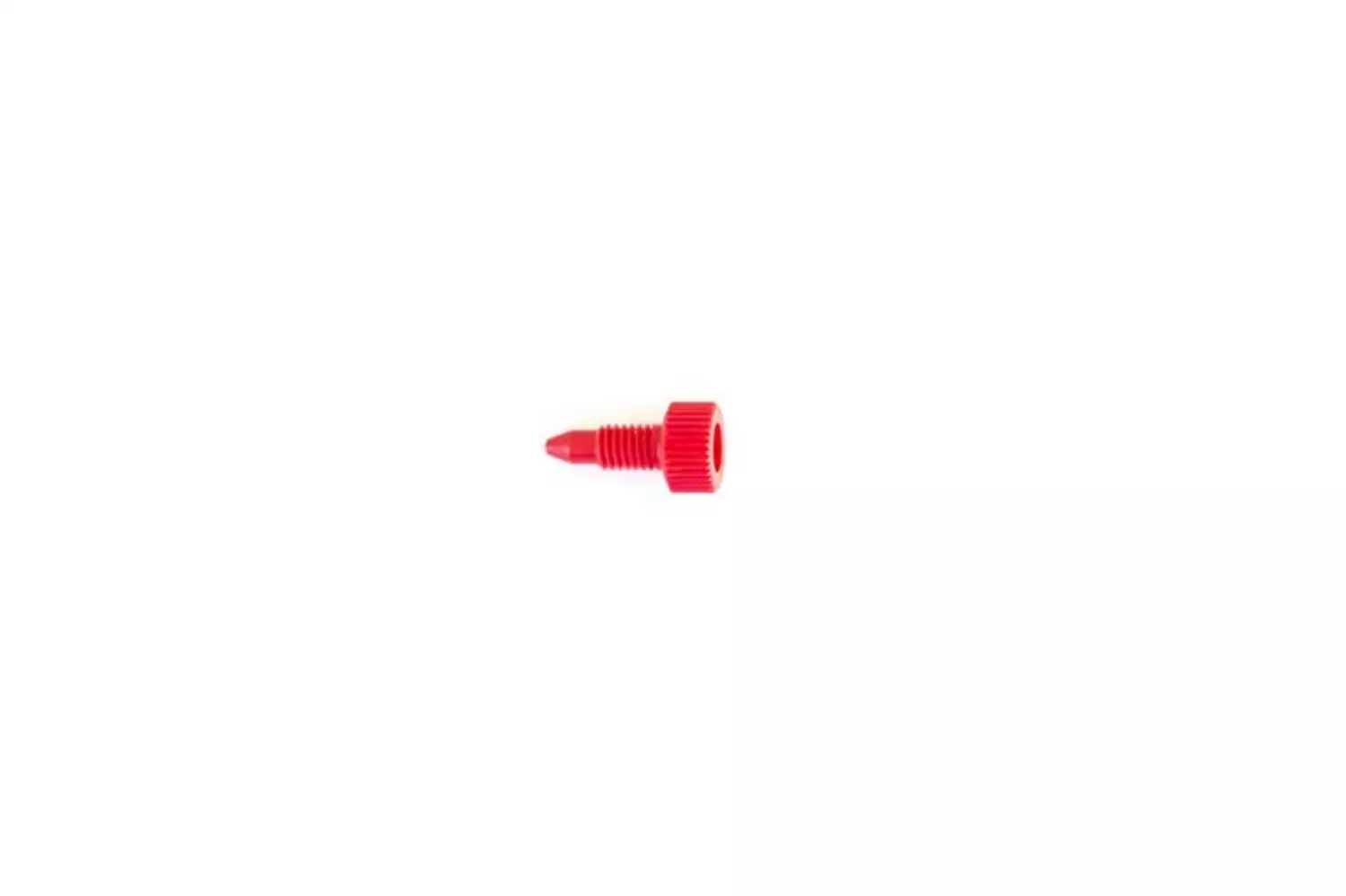

202061Plug liquid out red
20207Individual Filter Adapter (Luer-F) (For external liquid feeding)
20208Fitting liquid inlet HovaCAL®

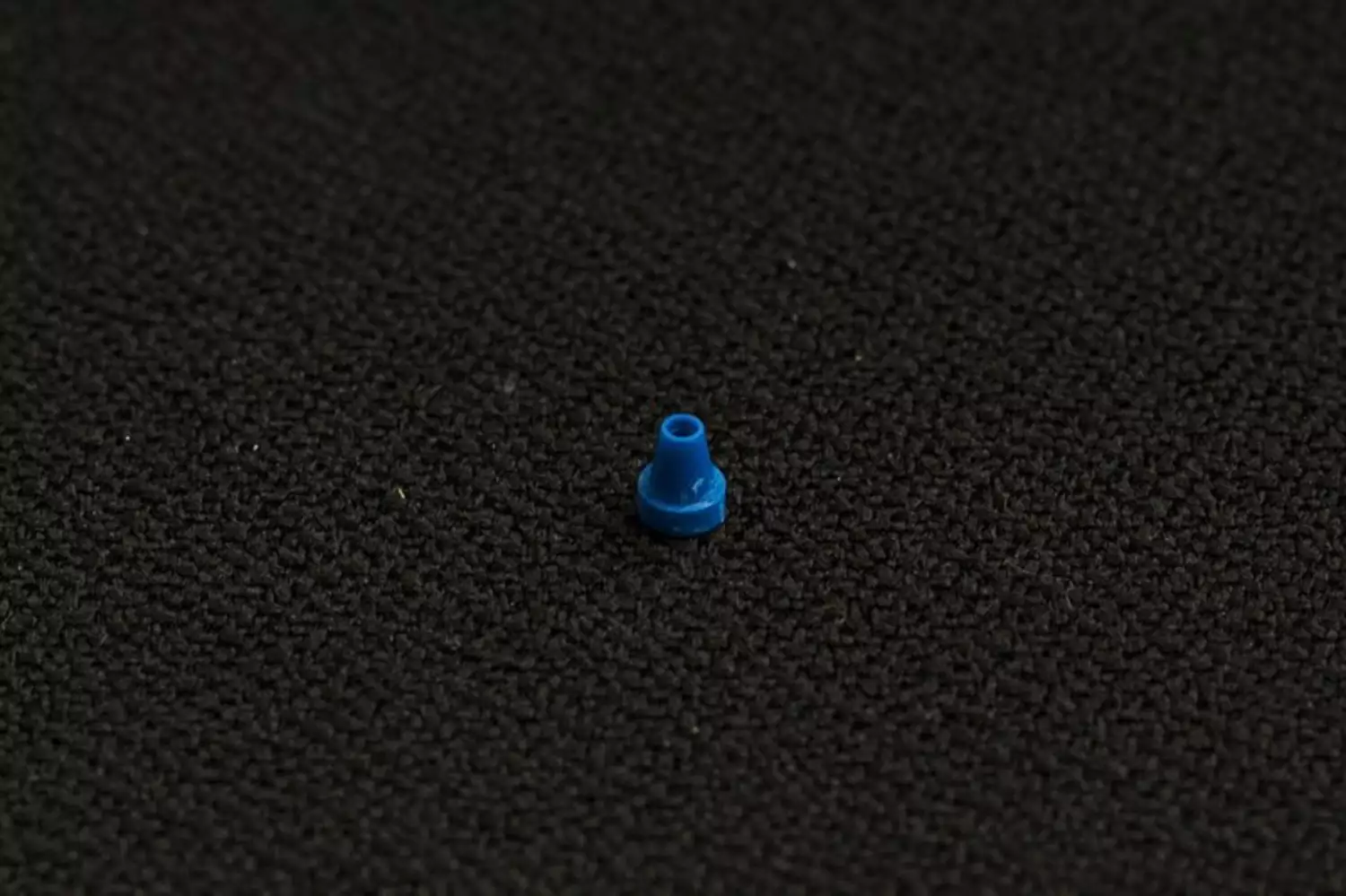

202081Taper for Fitting Part No. 20208

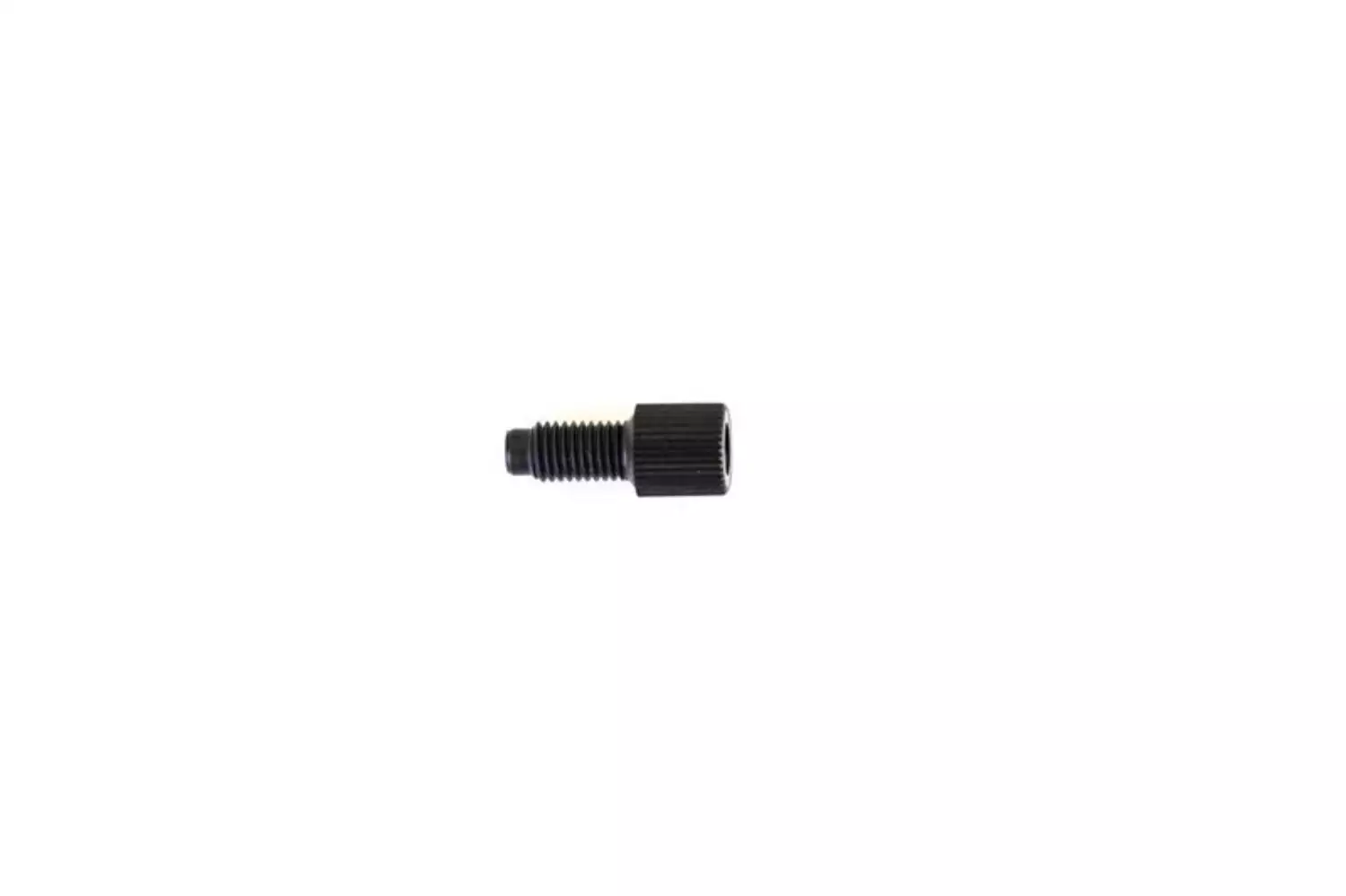

202082Plug liquid in black

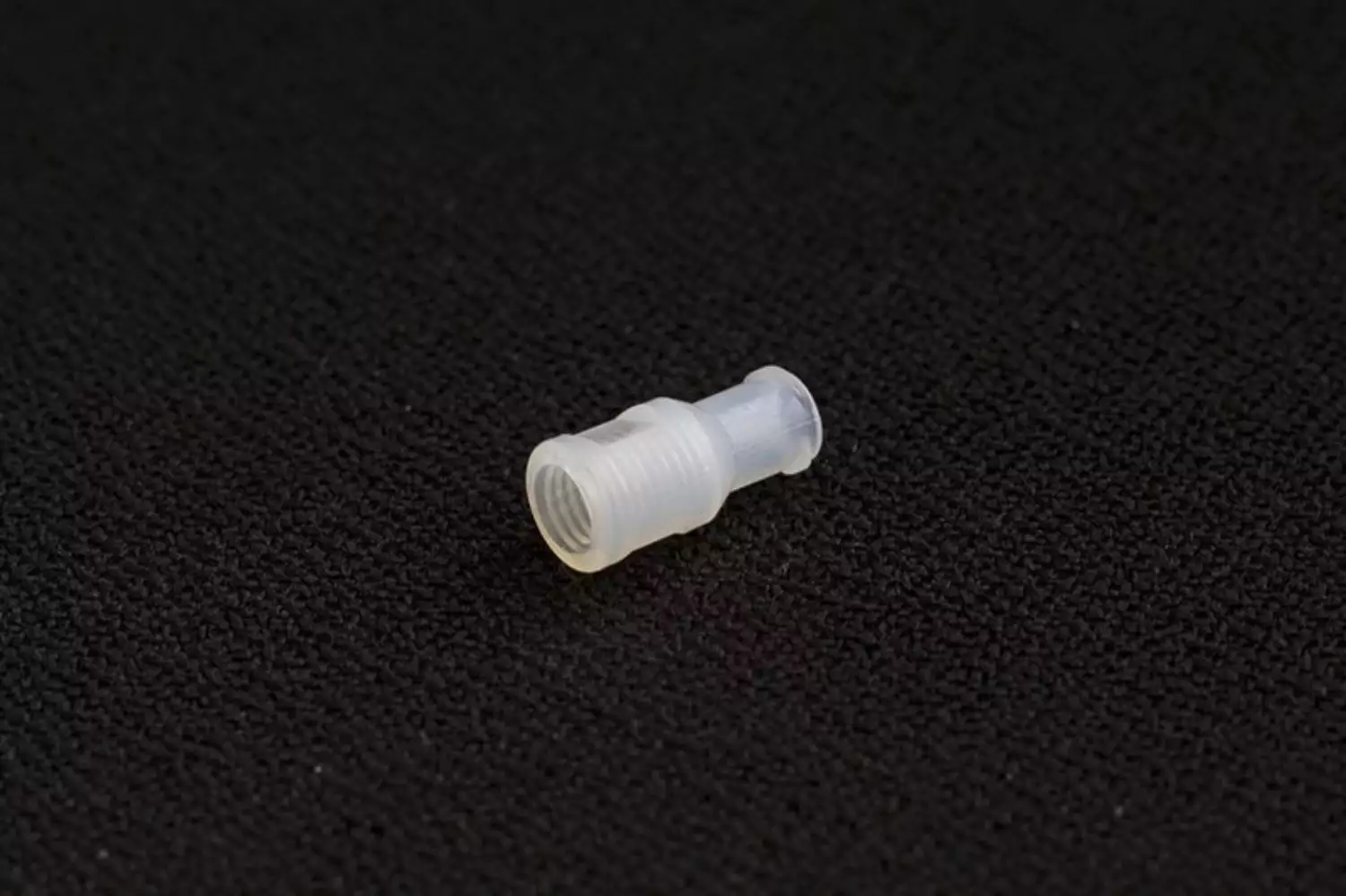

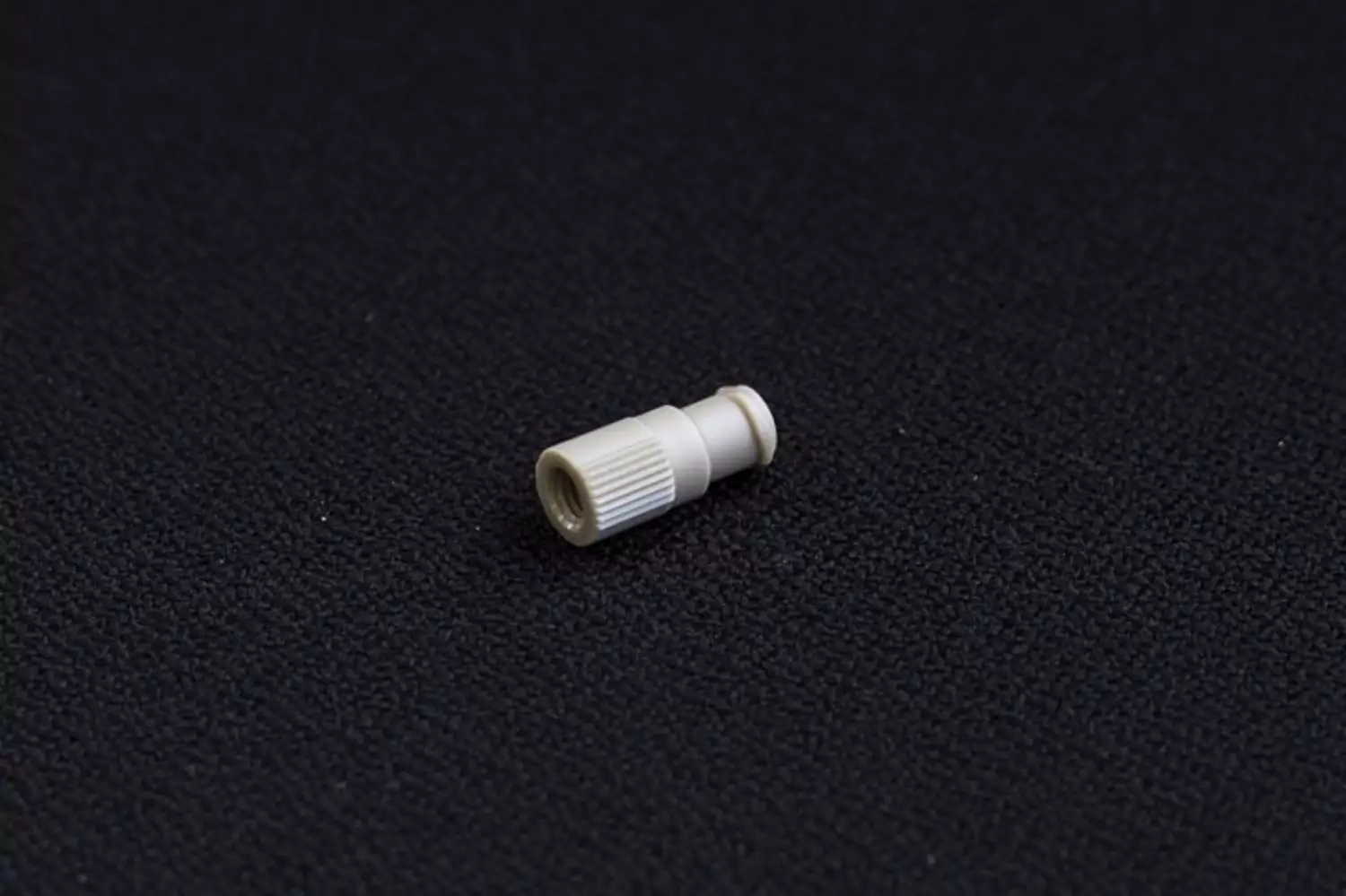

20209Connector for liquid tube balance-peristaltic (For external liquid feeding)

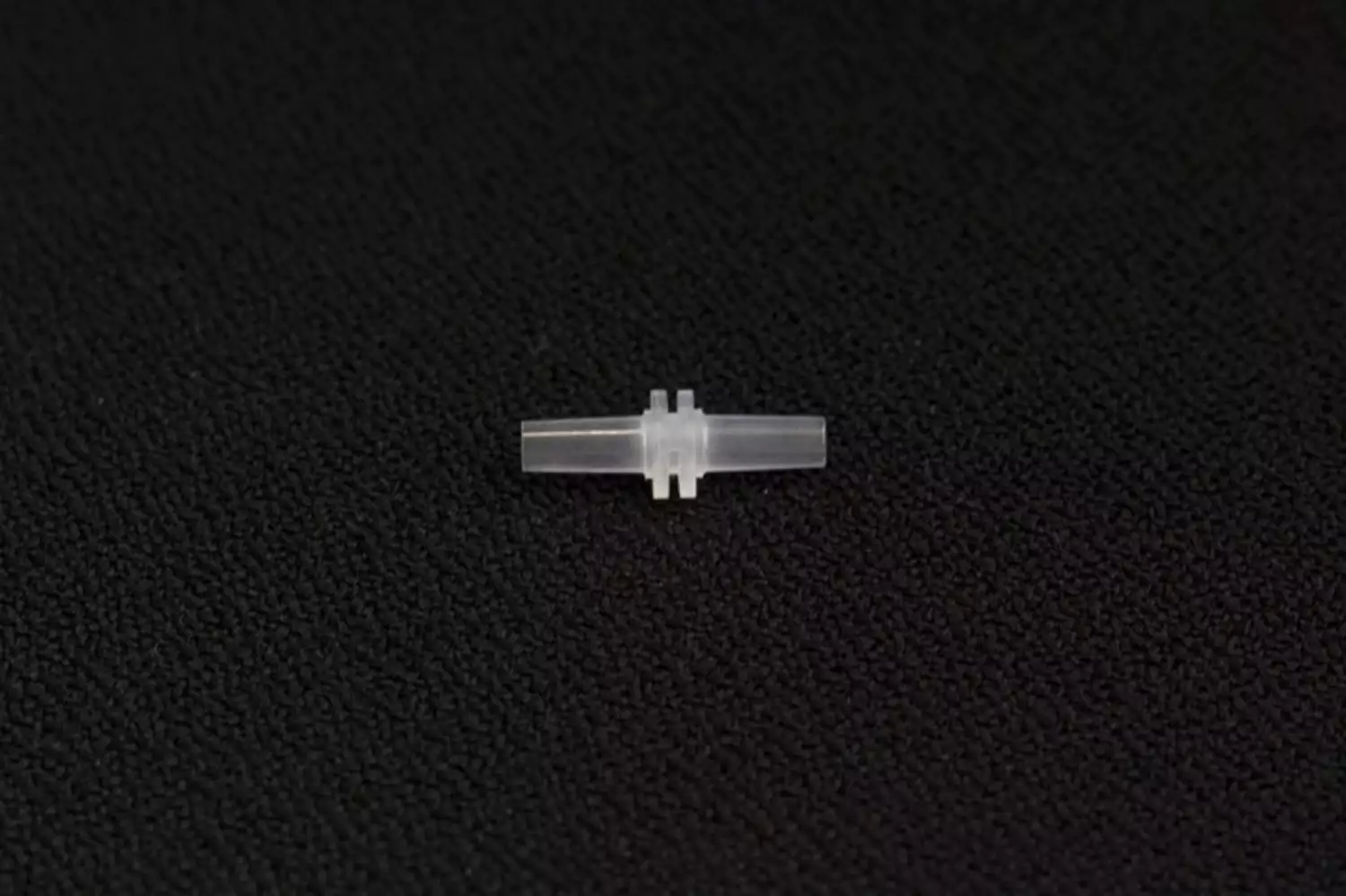

202091Intermediate Adapter (For external liquid feeding)

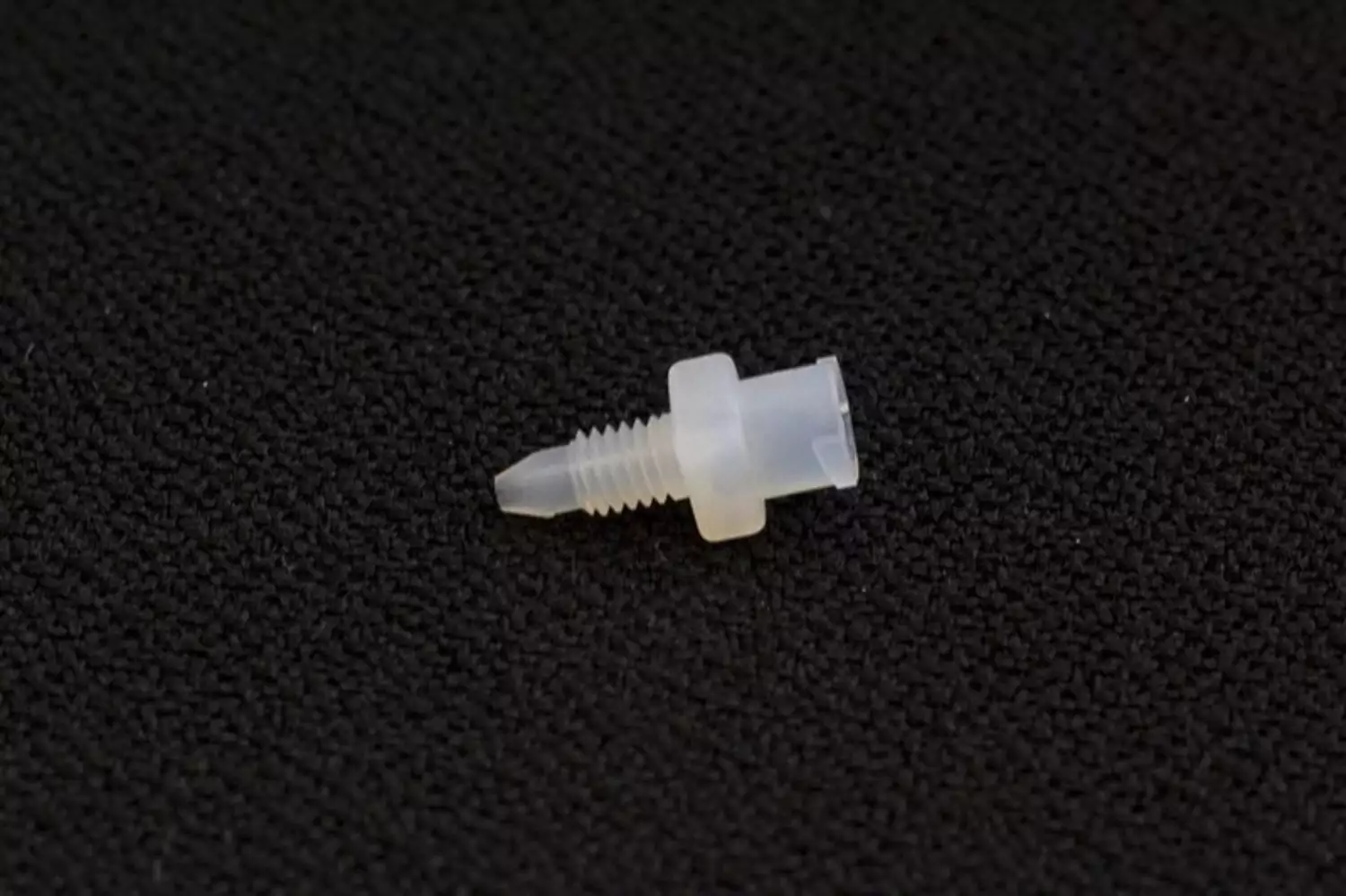

20210Screw connector for pulsation damper

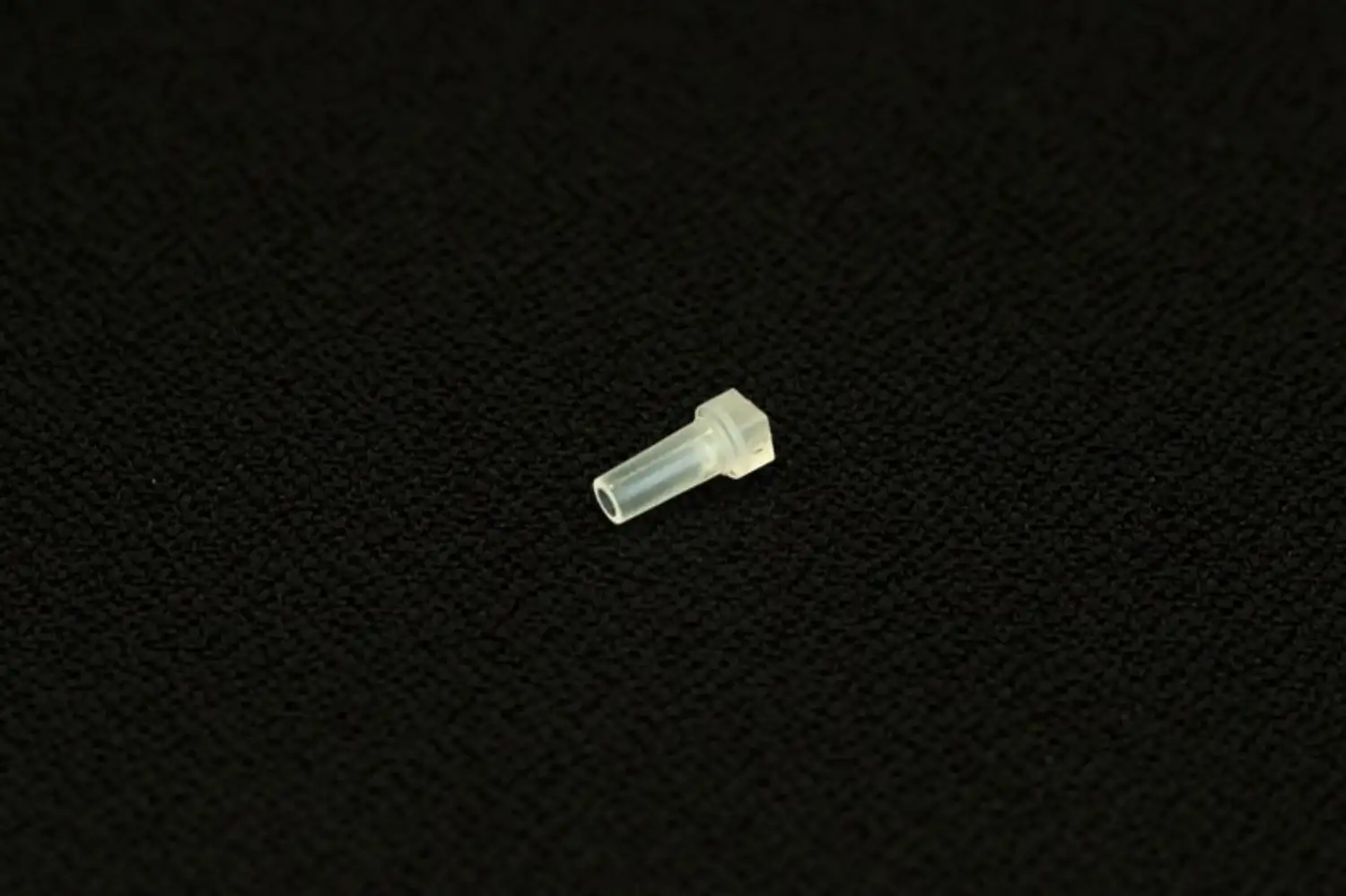

2021041Plug filter inlet

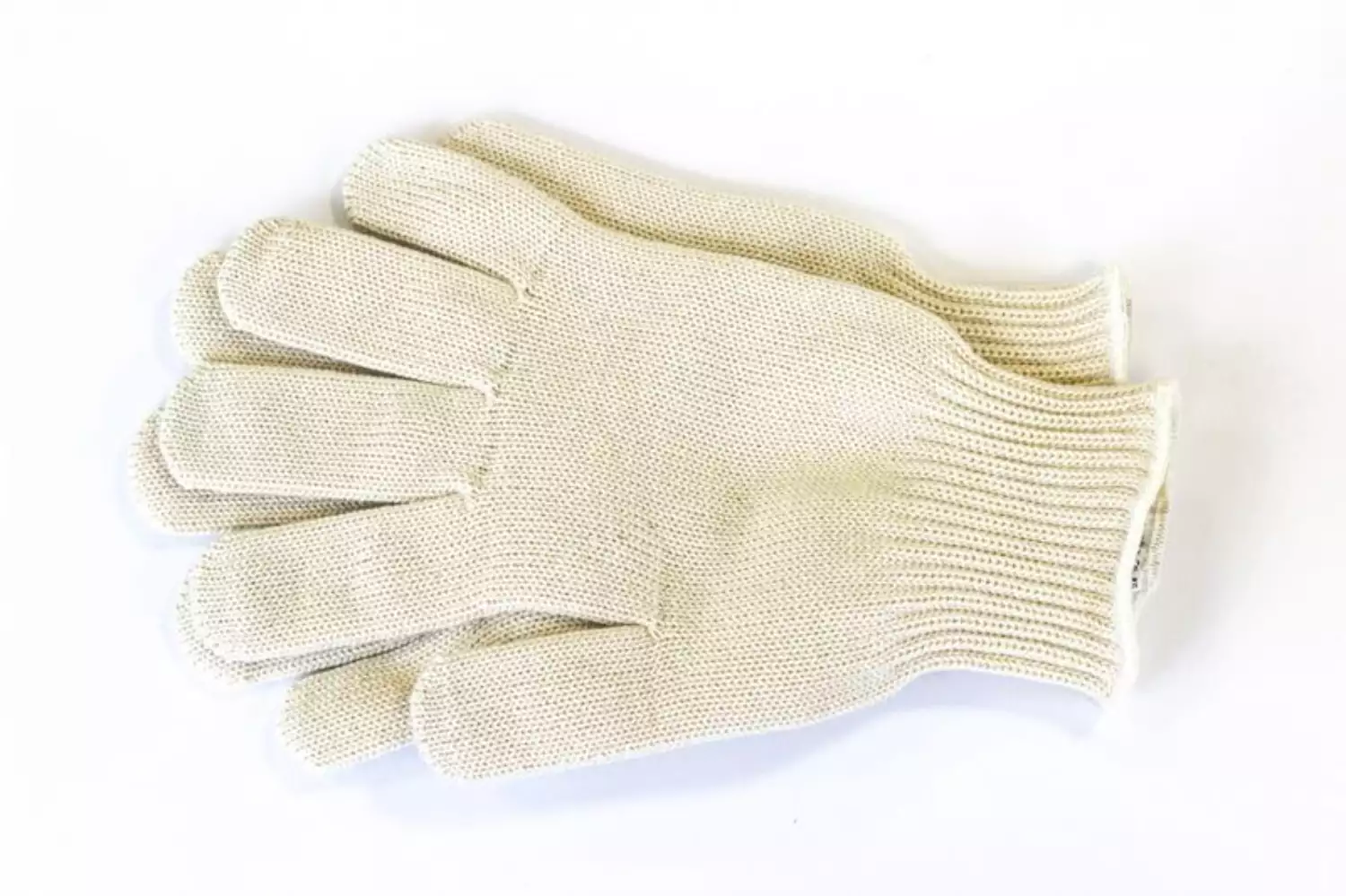

300051Temperature protective gloves

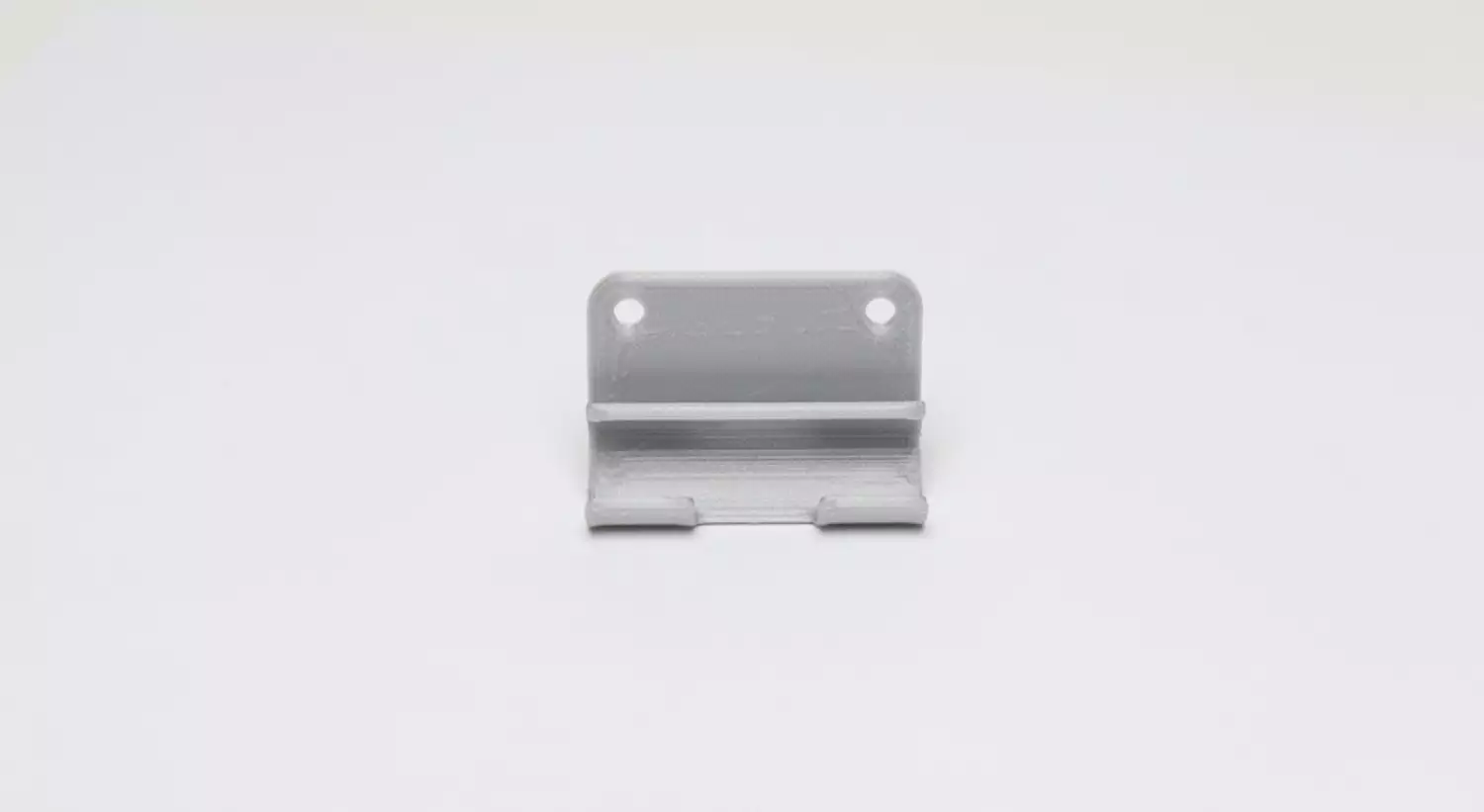

40141Holder for pulsation damper/Fluiddamper

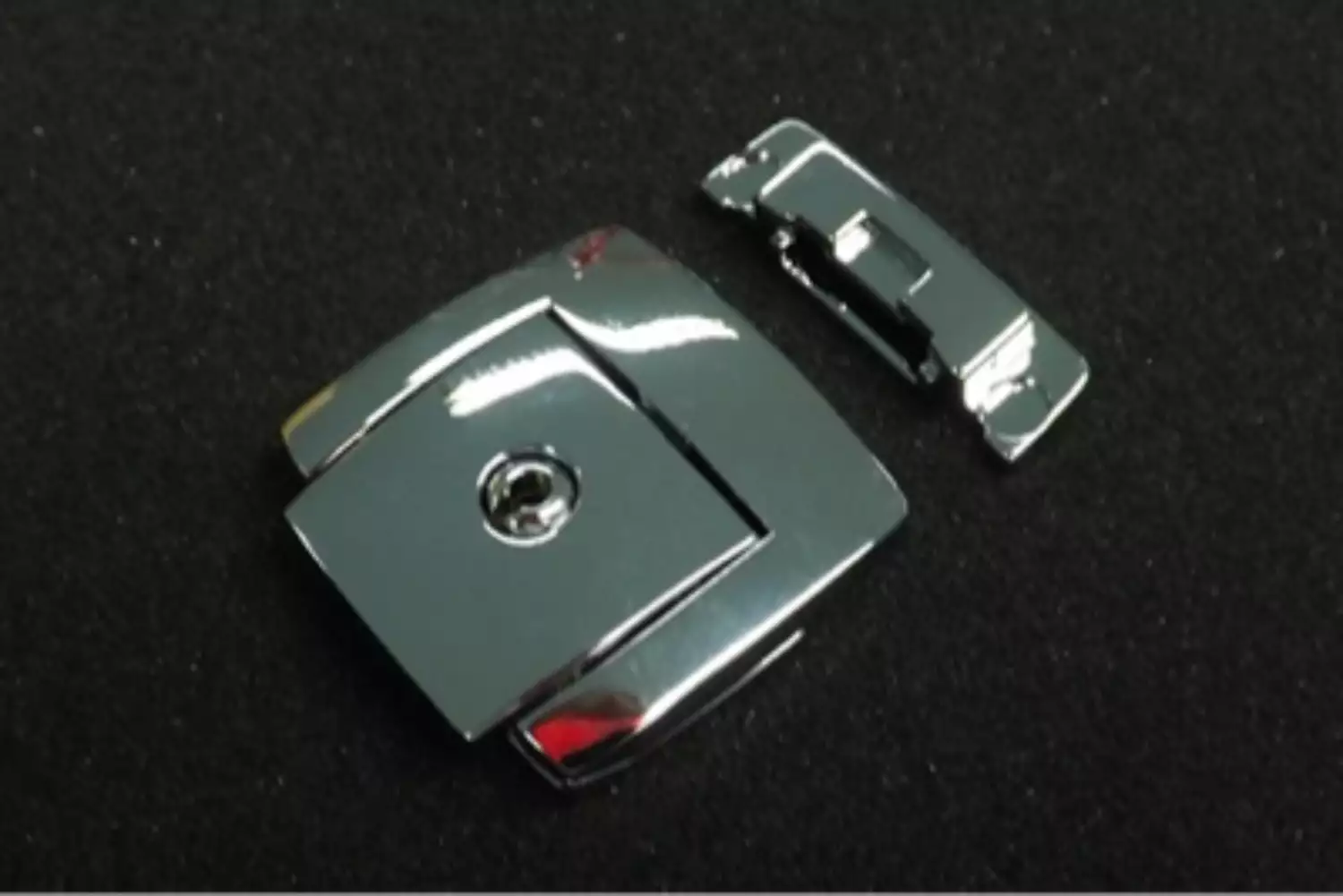

500011Suit case lock
80000-4243Service set for HG-Tester

Valid from: 01.07.2023
